Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Package / Case

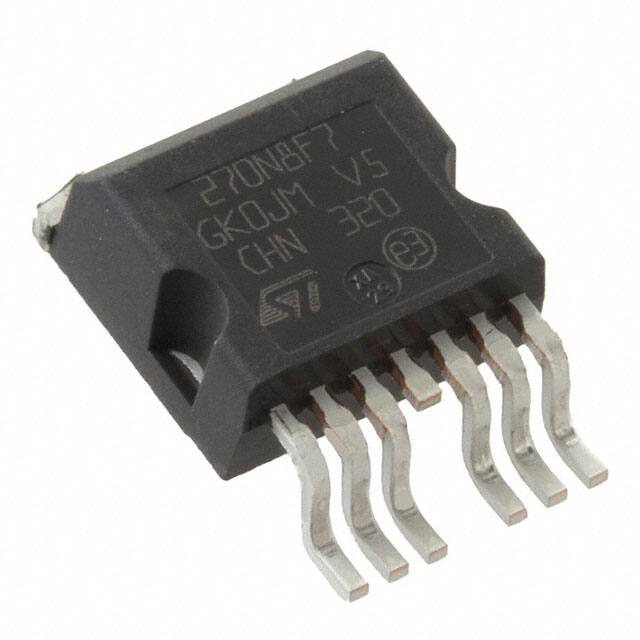

TO-263-7, D2Pak (6 Leads + Tab)

Mounting Type

Surface Mount

Mount

Surface Mount

Number of Pins

7

Transistor Element Material

SILICON

Turn Off Delay Time

98 ns

Power Dissipation (Max)

315W Tc

Number of Elements

1

Drive Voltage (Max Rds On, Min Rds On)

10V

Current - Continuous Drain (Id) @ 25℃

180A Tc

Series

DeepGATE™, STripFET™ VII

Packaging

Cut Tape (CT)

Operating Temperature

-55°C~175°C TJ

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Additional Feature

ULTRA LOW RESISTANCE

Terminal Form

GULL WING

Base Part Number

STH270

JESD-30 Code

R-PSSO-G6

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

315W

Case Connection

DRAIN

Turn On Delay Time

56 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

2.1m Ω @ 90A, 10V

Vgs(th) (Max) @ Id

4V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

13600pF @ 50V

Gate Charge (Qg) (Max) @ Vgs

193nC @ 10V

Rise Time

180ns

Vgs (Max)

±20V

Fall Time (Typ)

42 ns

Continuous Drain Current (ID)

180A

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

80V

Width

15.25mm

Length

10.4mm

Height

4.8mm

RoHS Status

ROHS3 Compliant

Radiation Hardening

No

Lead Free

Lead Free
