Factory Lead Time

11 Weeks

Mount

Through Hole

Mounting Type

Through Hole, Right Angle

Housing Material

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Body Material

Polybutylene Terephthalate (PBT), Glass Filled

Contact Materials

Phosphor Bronze

ElectricalLife

2,000 Cycles

Insulation Materials

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Voltage Rated

24VDC

Operating Temperature

-40°C~85°C

Packaging

Tube

Series

KAS

Published

2006

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

PC Pin

ECCN Code

EAR99

Number of Positions

5

Additional Feature

PACKAGING TAPE

Voltage - Rated DC

24V

Pitch

0.100 2.54mm Full

Current Rating

25mA

Contact Finish

Gold

Termination Style

PC Pin

Body Breadth

9.8806 mm

Actuator Type

Slide (Standard)

Circuit

SPST

Contact Resistance

0.1mOhm

Insulation Resistance

100000000Ohm

Contact Current(DC)-Max

0.1A

Mechanical Life

2,000 Cycles

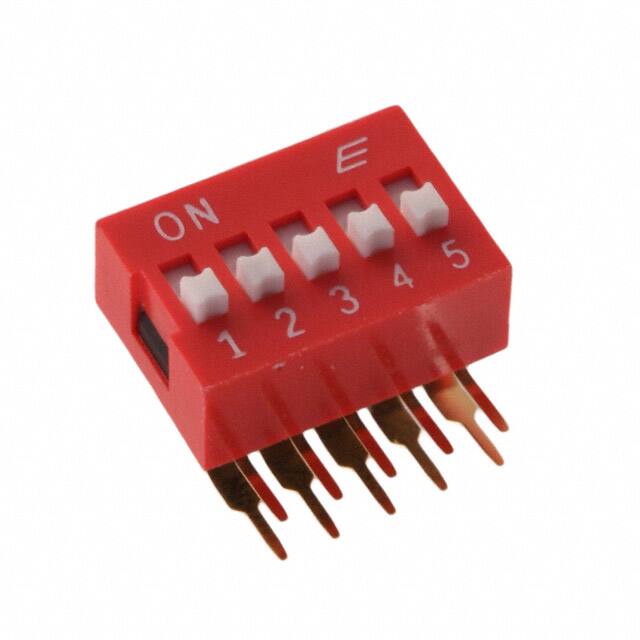

Switch Type

SLIDE DIP SWITCH

Contact Timing

BREAK-BEFORE-MAKE

PCB Hole Count

16

Contact Function

ON-OFF

Washable

No

Actuator Level

Raised

Solderability

HAND

Length

0.554 14.06mm

Body Height

8.9916mm

Height Above Board

0.390 9.90mm

RoHS Status

ROHS3 Compliant
