Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

12 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

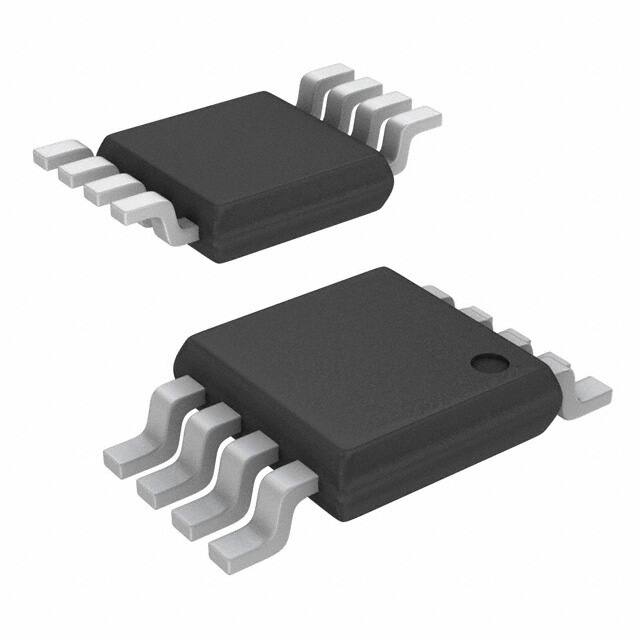

Package / Case

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Number of Pins

8

Number of Elements

2

Operating Temperature

-40°C~125°C

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn) - annealed

Packing Method

TAPE AND REEL

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

2

Supply Voltage

3.3V

Terminal Pitch

0.65mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

TSV912

Pin Count

8

Output Type

Rail-to-Rail

Power Supplies

3/5V

Operating Supply Current

820μA

Nominal Supply Current

1.1mA

Output Current

35mA

Slew Rate

4.5V/μs

Architecture

VOLTAGE-FEEDBACK

Amplifier Type

General Purpose

Common Mode Rejection Ratio

62 dB

Current - Input Bias

1pA

Voltage - Supply, Single/Dual (±)

2.5V~5.5V

Output Current per Channel

35mA

Input Offset Voltage (Vos)

1.5mV

Gain Bandwidth Product

8MHz

Unity Gain BW-Nom

8000 kHz

Voltage Gain

91dB

Average Bias Current-Max (IIB)

0.000001μA

Low-Offset

NO

Frequency Compensation

YES

Supply Voltage Limit-Max

6V

Low-Bias

YES

Micropower

NO

Bias Current-Max (IIB) @25C

0.00001μA

Programmable Power

NO

Wideband

NO

Power

NO

Height

850μm

Length

3mm

Width

3mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
