Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

30 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

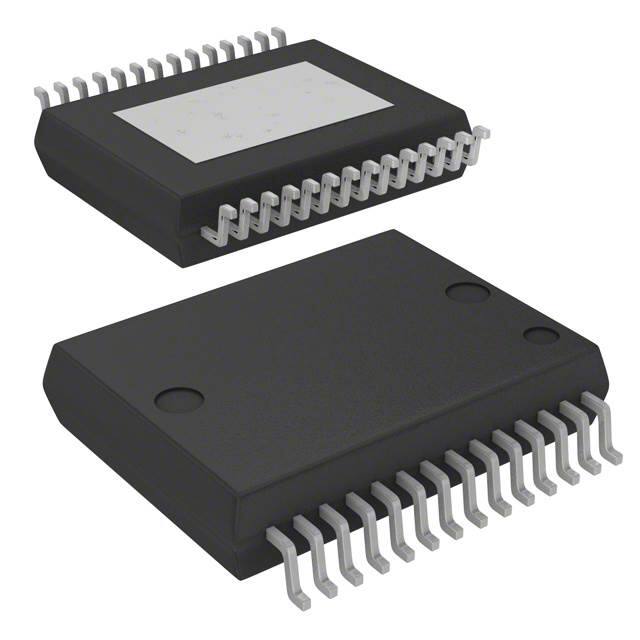

28-SSOP (0.295, 7.50mm Width) Exposed Pad

Number of Pins

28

Turn Off Delay Time

100 μs

Operating Temperature

-40°C~125°C TA

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

28

ECCN Code

EAR99

Resistance

700mOhm

Terminal Finish

Matte Tin (Sn) - annealed

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

5V

Terminal Pitch

0.65mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

L9733

Pin Count

28

Number of Outputs

8

Output Type

N-Channel

Max Output Current

800mA

Operating Supply Voltage

5V

Power Supplies

5V

Interface

SPI

Output Configuration

High Side or Low Side

Voltage - Supply (Vcc/Vdd)

4.5V~5.5V

Max Supply Current

8.5mA

Input Type

Non-Inverting

Turn On Delay Time

20 μs

Switch Type

General Purpose

Output Current per Channel

1A

Rise Time

70ns

Fall Time (Typ)

70 ns

Ratio - Input:Output

1:8

Voltage - Load

4.5V~18V

Driver Number of Bits

8

Fault Protection

Open Load Detect, Over Temperature

Output Peak Current Limit-Nom

1A

Rds On (Typ)

700m Ω (Max)

Built-in Protections

OVER CURRENT; THERMAL

Output Current Flow Direction

SOURCE

Features

PWM Input

Length

10.3mm

Height Seated (Max)

2.45mm

Width

7.5mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
