Lifecycle Status

ACTIVE (Last Updated: 6 months ago)

Factory Lead Time

20 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

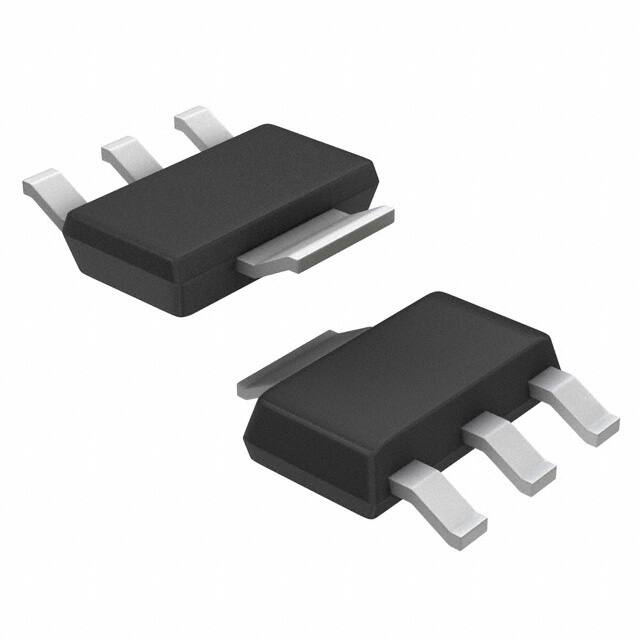

Package / Case

TO-261-4, TO-261AA

Number of Pins

4

Weight

188.014037mg

Current - Supply (Nom)

100μA

Turn Off Delay Time

450 ns

Operating Temperature

-40°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

OMNIFET II™, VIPower™

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

4

ECCN Code

EAR99

Resistance

120mOhm

Terminal Finish

Matte Tin (Sn) - annealed

Max Power Dissipation

7W

Voltage - Supply

Not Required

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

5V

Terminal Pitch

2.3mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

VNN3NV

Pin Count

4

Output Type

N-Channel

Max Output Current

5A

Interface

On/Off

Operating Supply Current

100μA

Output Configuration

Low Side

Power Dissipation

7W

Current - Output

3.5A

Input Type

Non-Inverting

Turn On Delay Time

90 ns

Switch Type

General Purpose

Output Current per Channel

3.5A

Rise Time

250ns

Fall Time (Typ)

250 ns

Ratio - Input:Output

1:1

Voltage - Load

36V Max

Fault Protection

Current Limiting (Fixed), Over Temperature, Over Voltage

Number of Drivers

1

Output Peak Current Limit-Nom

5A

Rds On (Typ)

120m Ω (Max)

Built-in Protections

TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

On-State Resistance

120mOhm

Height

1.9mm

Length

6.7mm

Width

3.7mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
