Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Mount

Surface Mount

Mounting Type

Surface Mount

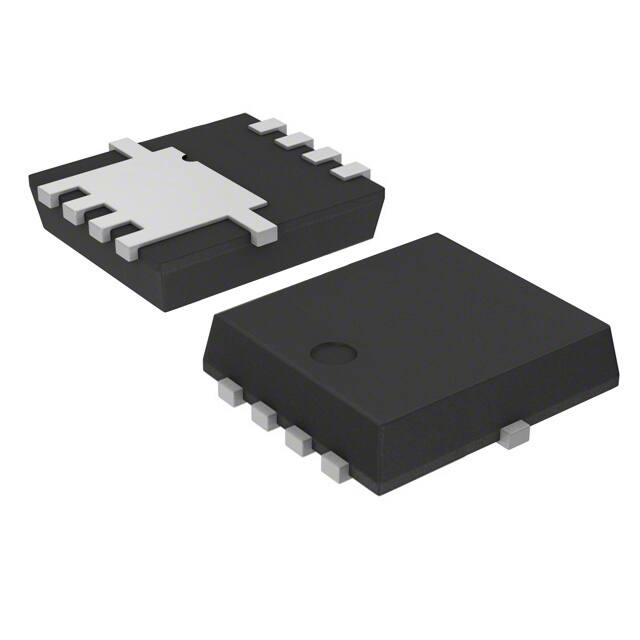

Package / Case

8-PowerVDFN

Number of Pins

8

Current - Continuous Drain (Id) @ 25℃

46A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Power Dissipation (Max)

5W Ta 72W Tc

Turn Off Delay Time

24 ns

Operating Temperature

-55°C~175°C TJ

Packaging

Cut Tape (CT)

Series

DeepGATE™, STripFET™ VII

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

ECCN Code

EAR99

Resistance

18mOhm

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STL60

Element Configuration

Single

Turn On Delay Time

15.2 ns

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

18m Ω @ 6A, 10V

Vgs(th) (Max) @ Id

4.5V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1640pF @ 50V

Gate Charge (Qg) (Max) @ Vgs

25nC @ 10V

Rise Time

16.8ns

Fall Time (Typ)

8 ns

Continuous Drain Current (ID)

46A

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

100V

Height

950μm

Length

5.4mm

Width

6.35mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
