Factory Lead Time

20 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

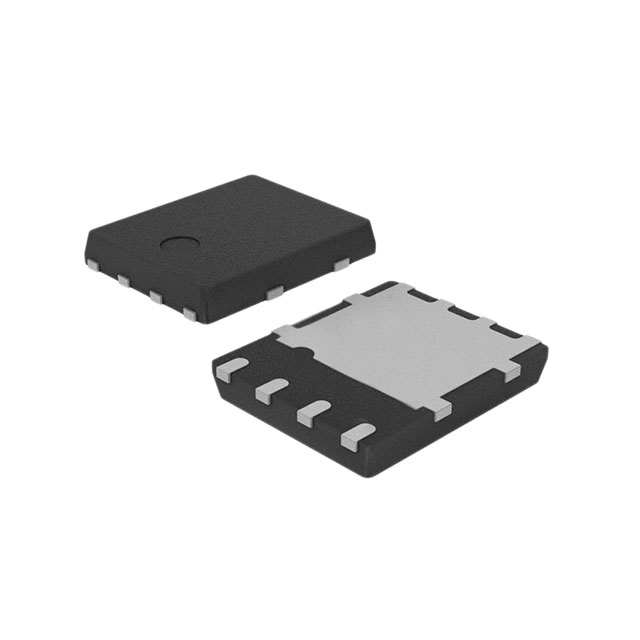

Package / Case

8-PowerVDFN

Number of Pins

8

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

60A Tc

Drive Voltage (Max Rds On, Min Rds On)

4.5V 10V

Number of Elements

1

Power Dissipation (Max)

100W Tc

Turn Off Delay Time

170 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

1V @ 250μA (Min)

Operating Temperature

175°C TJ

Packaging

Cut Tape (CT)

Series

STripFET™ F6

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STL60

JESD-30 Code

R-PDSO-F5

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

Turn On Delay Time

49.4 ns

FET Type

P-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

14m Ω @ 6.5A, 10V

Input Capacitance (Ciss) (Max) @ Vds

3525pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

34nC @ 4.5V

Drain to Source Voltage (Vdss)

40V

Vgs (Max)

±20V

Continuous Drain Current (ID)

60A

Gate to Source Voltage (Vgs)

20V

Drain-source On Resistance-Max

0.019Ohm

Pulsed Drain Current-Max (IDM)

240A

DS Breakdown Voltage-Min

40V

Height

950μm

Length

6.35mm

Width

5.4mm

RoHS Status

ROHS3 Compliant
