Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

12 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

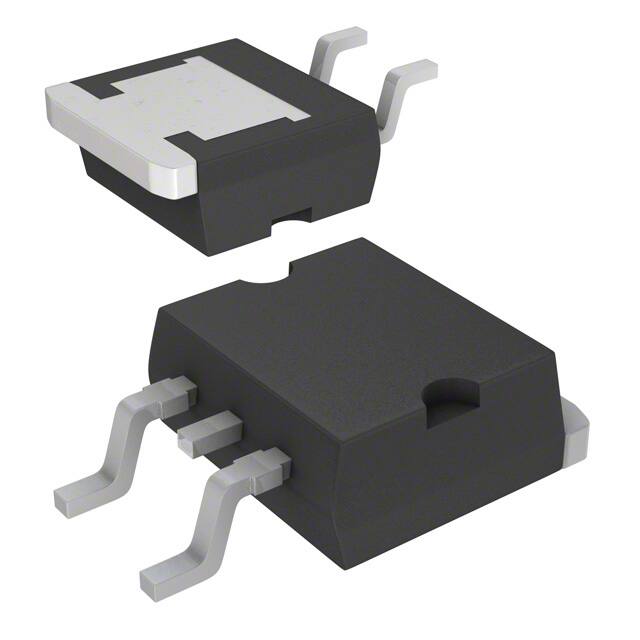

Package / Case

TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

38A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

80W Tc

Turn Off Delay Time

28 ns

Operating Temperature

175°C TJ

Packaging

Tape & Reel (TR)

Series

STripFET™ II

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

Termination

SMD/SMT

ECCN Code

EAR99

Resistance

23mOhm

Terminal Finish

Matte Tin (Sn) - annealed

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

245

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

STB45N

Pin Count

3

JESD-30 Code

R-PSSO-G2

Qualification Status

Not Qualified

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

80W

Turn On Delay Time

12 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

28m Ω @ 19A, 10V

Vgs(th) (Max) @ Id

4V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

980pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

58nC @ 10V

Rise Time

40ns

Vgs (Max)

±20V

Fall Time (Typ)

10 ns

Continuous Drain Current (ID)

19A

Threshold Voltage

3V

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

60V

Dual Supply Voltage

60V

Nominal Vgs

3 V

Height

4.6mm

Length

10.4mm

Width

9.35mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
