Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

20 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

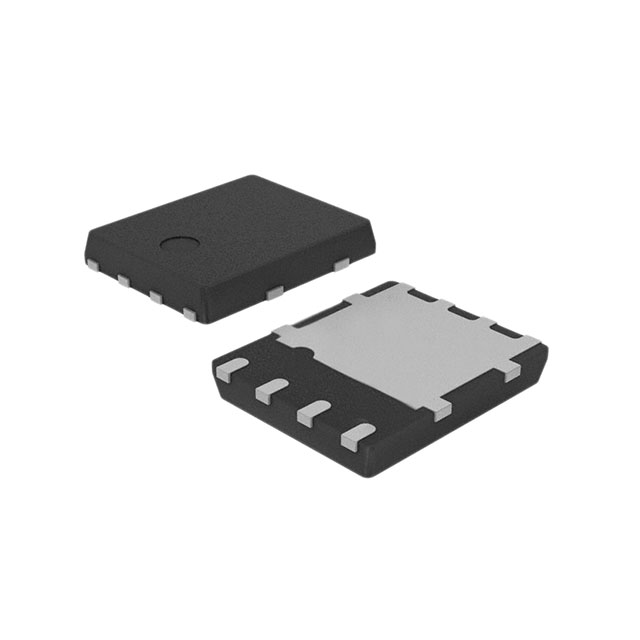

Package / Case

8-PowerVDFN

Number of Pins

5

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

160A Tc

Drive Voltage (Max Rds On, Min Rds On)

4.5V 10V

Number of Elements

1

Power Dissipation (Max)

136W Tc

Turn Off Delay Time

107.5 ns

Operating Temperature

-55°C~175°C TJ

Packaging

Tape & Reel (TR)

Series

DeepGATE™, STripFET™ VI

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Resistance

1.3MOhm

Additional Feature

ULTRA-LOW RESISTANCE

Terminal Position

DUAL

Base Part Number

STL160

Pin Count

8

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Power Dissipation

80W

Case Connection

DRAIN

Turn On Delay Time

18.5 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

1.3m Ω @ 17.5A, 10V

Vgs(th) (Max) @ Id

1V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

6375pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

61.5nC @ 4.5V

Rise Time

32ns

Vgs (Max)

±20V

Fall Time (Typ)

54 ns

Continuous Drain Current (ID)

160A

Threshold Voltage

1V

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

30V

Avalanche Energy Rating (Eas)

900 mJ

Height

880μm

Length

4.75mm

Width

5.75mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
