Factory Lead Time

20 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

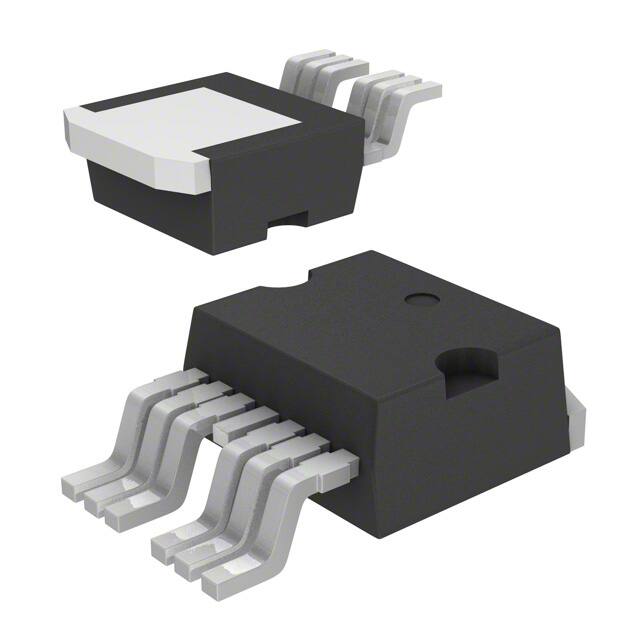

Package / Case

TO-263-7, D2Pak (6 Leads + Tab)

Current - Continuous Drain (Id) @ 25℃

180A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Power Dissipation (Max)

300W Tc

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

4V @ 250μA

Operating Temperature

-55°C~175°C TJ

Packaging

Cut Tape (CT)

Series

Automotive, AEC-Q101, STripFET™ F6

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

ECCN Code

EAR99

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STH265

Configuration

Single

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

2.1m Ω @ 60A, 10V

Input Capacitance (Ciss) (Max) @ Vds

11800pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

183nC @ 10V

Drain to Source Voltage (Vdss)

60V

Vgs (Max)

±20V

Continuous Drain Current (ID)

180A

RoHS Status

ROHS3 Compliant
