Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Factory Lead Time

15 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

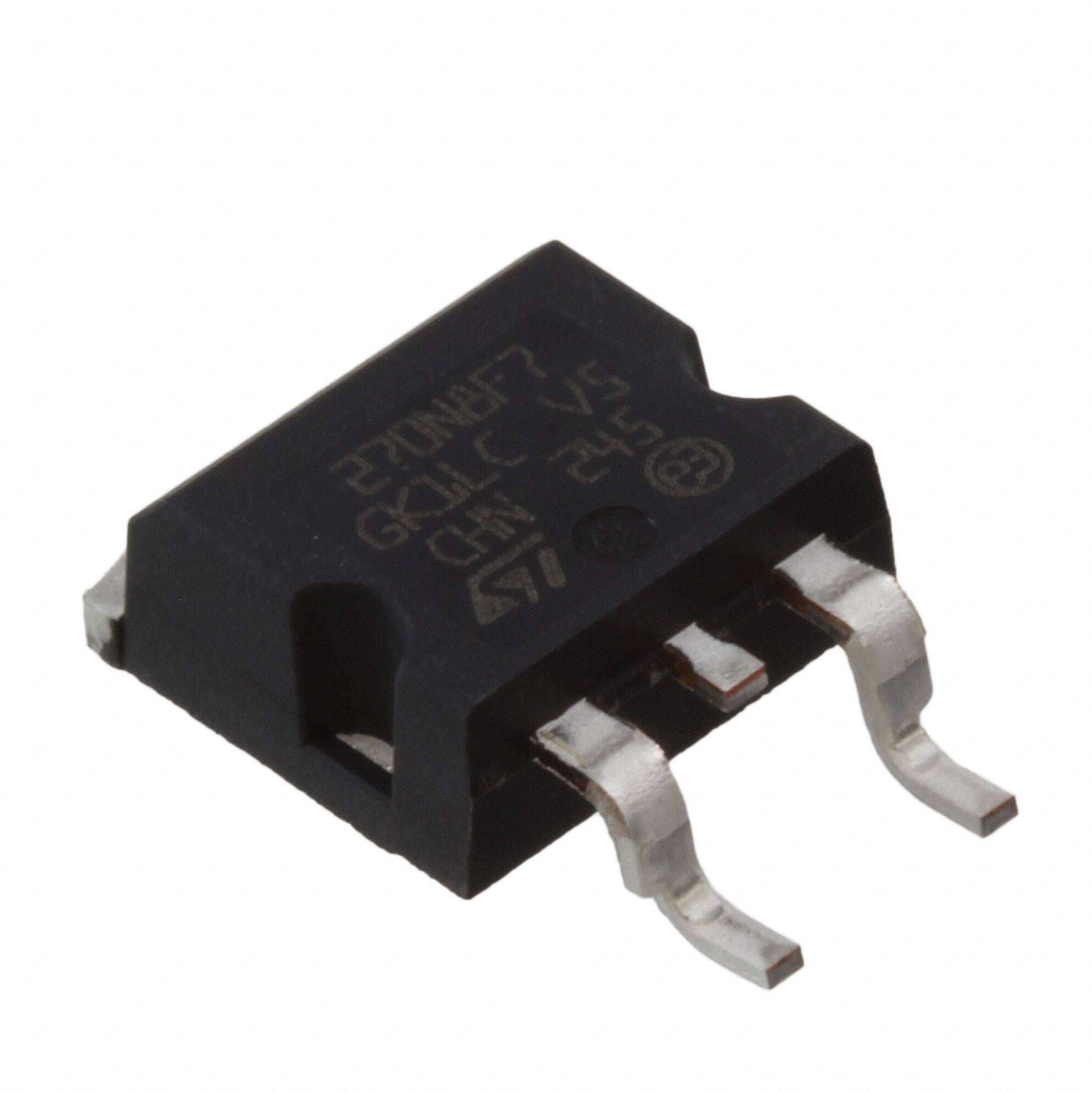

TO-263-3, D2Pak (2 Leads + Tab) Variant

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

180A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

315W Tc

Turn Off Delay Time

98 ns

Operating Temperature

-55°C~175°C TJ

Packaging

Cut Tape (CT)

Series

DeepGATE™, STripFET™ VII

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Additional Feature

ULTRA LOW RESISTANCE

Terminal Form

GULL WING

Base Part Number

STH270

JESD-30 Code

R-PSSO-G2

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

315W

Case Connection

DRAIN

Turn On Delay Time

56 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

2.1m Ω @ 90A, 10V

Vgs(th) (Max) @ Id

4V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

13600pF @ 50V

Gate Charge (Qg) (Max) @ Vgs

193nC @ 10V

Rise Time

180ns

Vgs (Max)

±20V

Fall Time (Typ)

42 ns

Continuous Drain Current (ID)

180A

Gate to Source Voltage (Vgs)

20V

Drain-source On Resistance-Max

0.0021Ohm

Drain to Source Breakdown Voltage

80V

Pulsed Drain Current-Max (IDM)

720A

Avalanche Energy Rating (Eas)

1160 mJ

Height

4.8mm

Length

10.4mm

Width

15.8mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
