Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Factory Lead Time

16 Weeks

Mount

Through Hole

Mounting Type

Through Hole

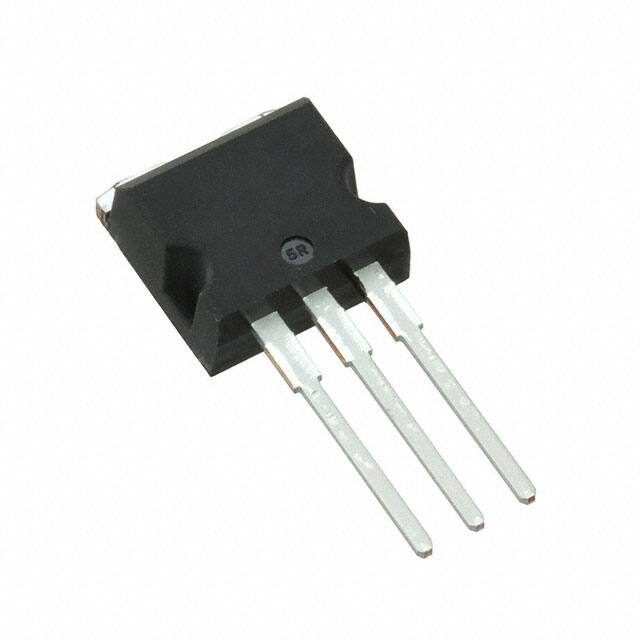

Package / Case

TO-262-3 Long Leads, I2Pak, TO-262AA

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

24A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

190W Tc

Turn Off Delay Time

72.5 ns

Operating Temperature

150°C TJ

Packaging

Tube

Series

MDmesh™ M2

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Base Part Number

STI33N

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

Turn On Delay Time

13.5 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

140m Ω @ 12A, 10V

Vgs(th) (Max) @ Id

4V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1790pF @ 100V

Gate Charge (Qg) (Max) @ Vgs

41.5nC @ 10V

Drain to Source Voltage (Vdss)

650V

Vgs (Max)

±25V

Continuous Drain Current (ID)

24A

Gate to Source Voltage (Vgs)

25V

Drain-source On Resistance-Max

0.14Ohm

Pulsed Drain Current-Max (IDM)

96A

DS Breakdown Voltage-Min

650V

Avalanche Energy Rating (Eas)

780 mJ

Height

9.35mm

Length

10.4mm

Width

4.6mm

RoHS Status

ROHS3 Compliant
