Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Factory Lead Time

12 Weeks

Mount

Through Hole

Mounting Type

Through Hole

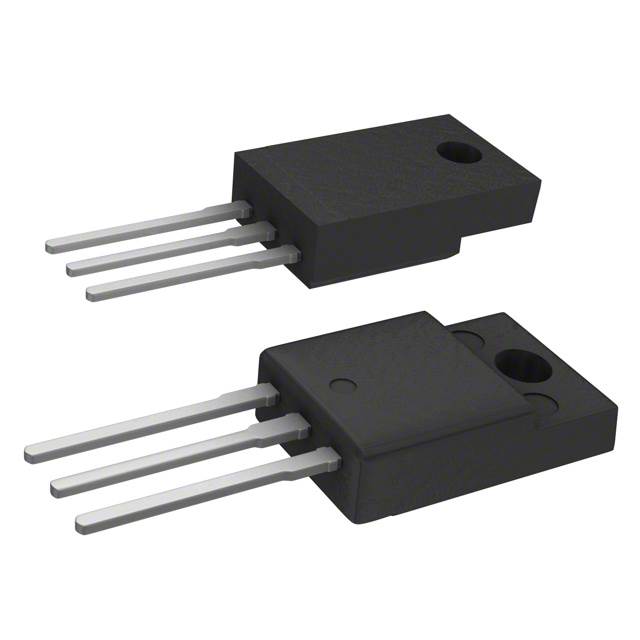

Package / Case

TO-220-3 Full Pack

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

60A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

45W Tc

Turn Off Delay Time

125 ns

Operating Temperature

-55°C~175°C TJ

Packaging

Tube

Series

STripFET™ II

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Base Part Number

STP80N

Pin Count

3

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

45W

Case Connection

ISOLATED

Turn On Delay Time

27 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

6.5m Ω @ 40A, 10V

Vgs(th) (Max) @ Id

4V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

4400pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

189nC @ 10V

Rise Time

155ns

Vgs (Max)

±20V

Fall Time (Typ)

65 ns

Continuous Drain Current (ID)

60A

Threshold Voltage

3V

JEDEC-95 Code

TO-220AB

Gate to Source Voltage (Vgs)

20V

Drain-source On Resistance-Max

0.0065Ohm

Drain to Source Breakdown Voltage

55V

Pulsed Drain Current-Max (IDM)

240A

Height

9.3mm

Length

10.4mm

Width

4.6mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
