Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Factory Lead Time

12 Weeks

Mount

Through Hole

Mounting Type

Through Hole

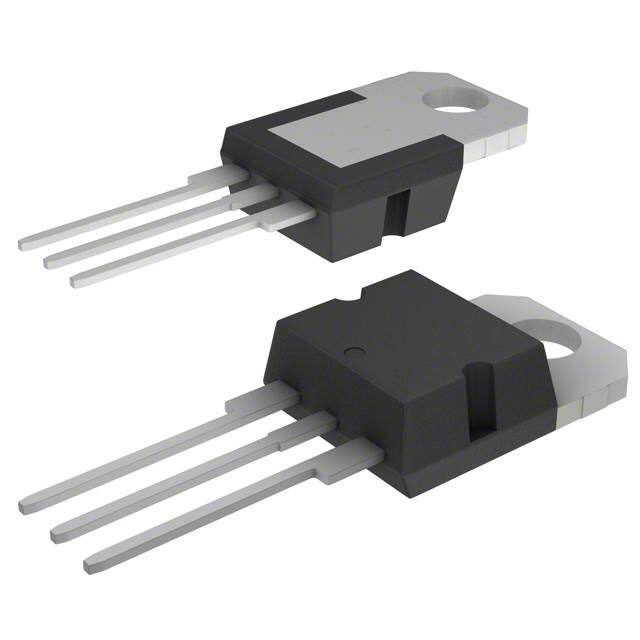

Package / Case

TO-220-3

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

14A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

150W Tc

Turn Off Delay Time

54 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tube

Series

SuperMESH™

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Resistance

340mOhm

Terminal Finish

Matte Tin (Sn)

Additional Feature

AVALANCHE RATED

Voltage - Rated DC

500V

Current Rating

14A

Base Part Number

STP14N

Pin Count

3

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

150W

Turn On Delay Time

24 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

380m Ω @ 6A, 10V

Vgs(th) (Max) @ Id

4.5V @ 100μA

Input Capacitance (Ciss) (Max) @ Vds

2000pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

92nC @ 10V

Rise Time

16ns

Vgs (Max)

±30V

Fall Time (Typ)

12 ns

Continuous Drain Current (ID)

6A

JEDEC-95 Code

TO-220AB

Gate to Source Voltage (Vgs)

30V

Drain to Source Breakdown Voltage

500V

Pulsed Drain Current-Max (IDM)

48A

Avalanche Energy Rating (Eas)

400 mJ

Nominal Vgs

3.75 V

Height

15.75mm

Length

10.4mm

Width

4.6mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
