Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

12 Weeks

Mount

Through Hole

Mounting Type

Through Hole

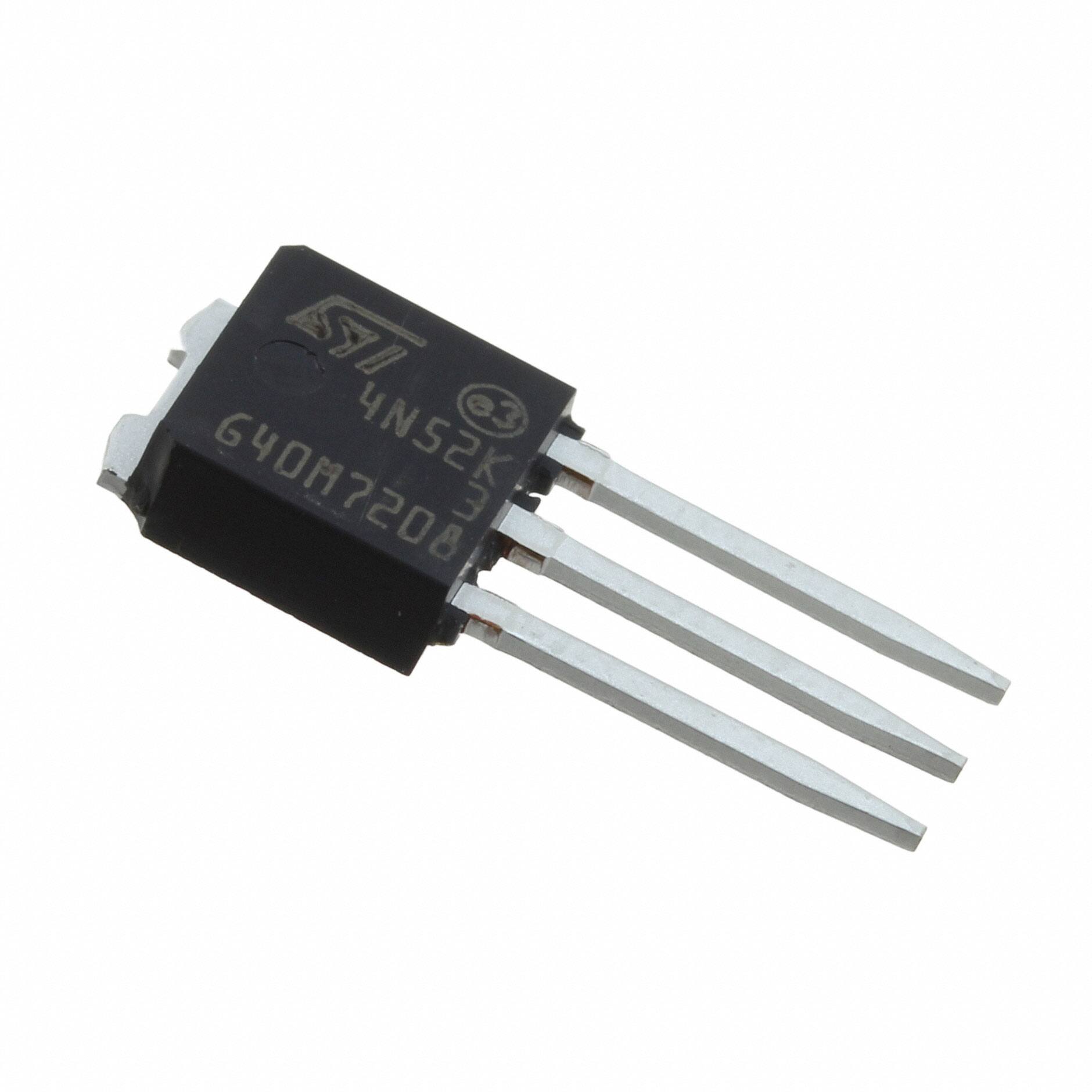

Package / Case

TO-251-3 Short Leads, IPak, TO-251AA

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

2.5A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

45W Tc

Turn Off Delay Time

21 ns

Operating Temperature

150°C TJ

Packaging

Tube

Series

SuperMESH3™

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn) - annealed

Additional Feature

ULTRA-LOW RESISTANCE

Peak Reflow Temperature (Cel)

260

Base Part Number

STU4N

Pin Count

3

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

45W

Turn On Delay Time

8 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

2.6 Ω @ 1.25A, 10V

Vgs(th) (Max) @ Id

4.5V @ 50μA

Input Capacitance (Ciss) (Max) @ Vds

334pF @ 100V

Gate Charge (Qg) (Max) @ Vgs

11nC @ 10V

Rise Time

7ns

Vgs (Max)

±30V

Fall Time (Typ)

14 ns

Continuous Drain Current (ID)

2.5A

Threshold Voltage

3.75V

JEDEC-95 Code

TO-220AB

Gate to Source Voltage (Vgs)

30V

Drain to Source Breakdown Voltage

525V

Pulsed Drain Current-Max (IDM)

10A

Avalanche Energy Rating (Eas)

110 mJ

Height

15.75mm

Length

10.4mm

Width

4.6mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
