Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Factory Lead Time

12 Weeks

Contact Plating

Tin

Mount

Surface Mount, Through Hole

Mounting Type

Through Hole

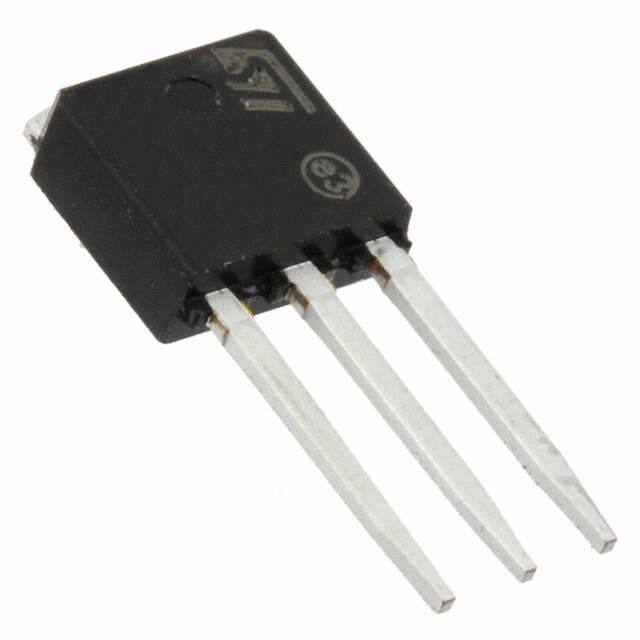

Package / Case

TO-251-3 Short Leads, IPak, TO-251AA

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

1A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

30W Tc

Turn Off Delay Time

19 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tube

Series

SuperMESH™

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

STD1NK

Pin Count

3

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

30W

Turn On Delay Time

6.5 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

8.5 Ω @ 500mA, 10V

Vgs(th) (Max) @ Id

3.7V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

156pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

10nC @ 10V

Rise Time

5ns

Vgs (Max)

±30V

Fall Time (Typ)

25 ns

Continuous Drain Current (ID)

1A

Threshold Voltage

3V

Gate to Source Voltage (Vgs)

30V

Drain Current-Max (Abs) (ID)

1A

Drain to Source Breakdown Voltage

600V

Pulsed Drain Current-Max (IDM)

4A

Avalanche Energy Rating (Eas)

25 mJ

Height

2.4mm

Length

6.6mm

Width

6.2mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
