Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

20 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

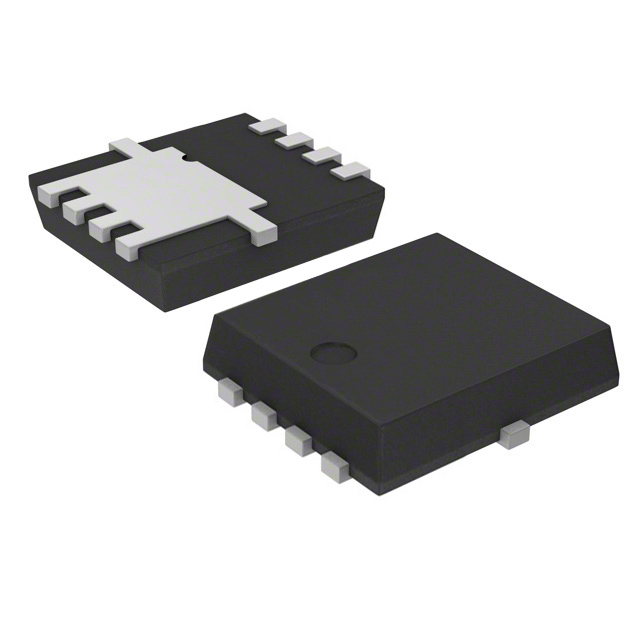

Package / Case

8-PowerVDFN

Number of Pins

8

Transistor Element Material

SILICON

Drive Voltage (Max Rds On, Min Rds On)

4.5V 10V

Number of Elements

1

Power Dissipation (Max)

2.9W Ta

Operating Temperature

150°C TJ

Packaging

Cut Tape (CT)

Series

STripFET™ F6

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STL8

JESD-30 Code

R-PDSO-F5

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

FET Type

P-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

20.5m Ω @ 4A, 10V

Vgs(th) (Max) @ Id

2.5V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

2850pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

22nC @ 4.5V

Drain to Source Voltage (Vdss)

40V

Vgs (Max)

±20V

Drain Current-Max (Abs) (ID)

8A

Drain-source On Resistance-Max

0.029Ohm

Pulsed Drain Current-Max (IDM)

32A

DS Breakdown Voltage-Min

40V

RoHS Status

ROHS3 Compliant
