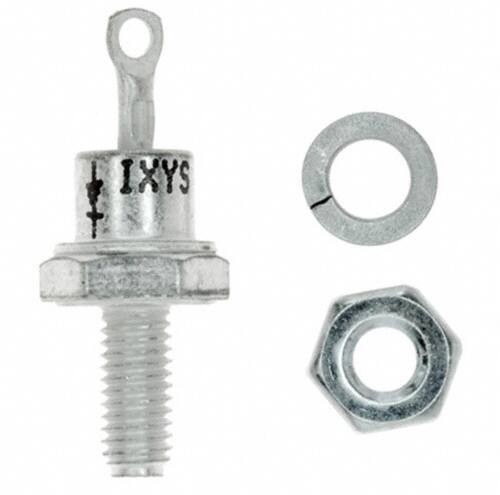

Factory Lead Time

18 Weeks

Mount

Chassis, Stud

Mounting Type

Chassis, Stud Mount

Package / Case

DO-203AA, DO-4, Stud

Number of Pins

2

Diode Element Material

SILICON

Operating Temperature (Max)

180°C

Operating Temperature (Min)

-40°C

Number of Elements

1

Packaging

Bulk

Published

2000

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

1

ECCN Code

EAR99

Applications

GENERAL PURPOSE

HTS Code

8541.10.00.80

Terminal Position

UPPER

Terminal Form

SOLDER LUG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

O-MUPM-D1

Qualification Status

Not Qualified

Element Configuration

Single

Speed

Standard Recovery >500ns, > 200mA (Io)

Diode Type

Avalanche

Current - Reverse Leakage @ Vr

4mA @ 800V

Voltage - Forward (Vf) (Max) @ If

1.36V @ 55A

Case Connection

ANODE

Forward Current

25A

Operating Temperature - Junction

-40°C~180°C

Max Surge Current

370A

Forward Voltage

1.36V

Max Reverse Voltage (DC)

800V

Average Rectified Current

25A

Number of Phases

1

Peak Reverse Current

4mA

Max Repetitive Reverse Voltage (Vrrm)

800V

Peak Non-Repetitive Surge Current

400A

Reverse Voltage

800V

Max Forward Surge Current (Ifsm)

400A

Height

31.32mm

Width

11mm

RoHS Status

ROHS3 Compliant
