Factory Lead Time

15 Weeks

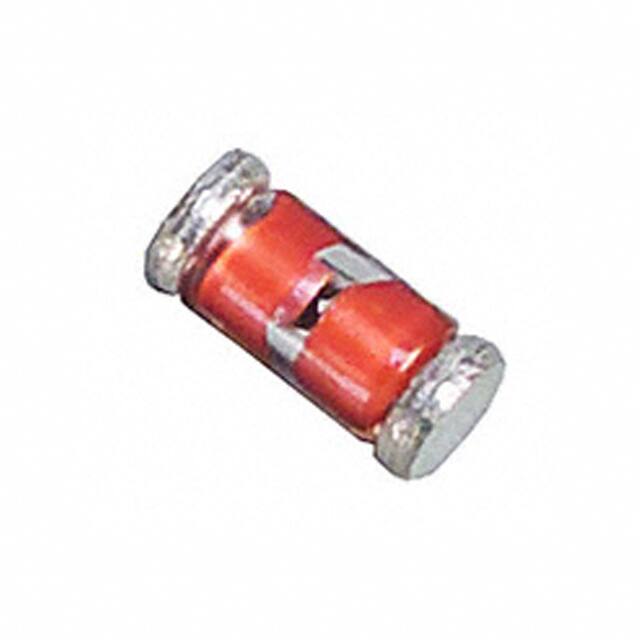

Package / Case

DO-213AA (Glass)

Mounting Type

Surface Mount

Mount

Surface Mount

Number of Pins

2

Weight

4.535924g

Diode Element Material

SILICON

Manufacturer Package Identifier

MINIMELF

Number of Elements

1

Operating Temperature (Min)

-65°C

Operating Temperature (Max)

125°C

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

Termination

SMD/SMT

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

HTS Code

8541.10.00.70

Capacitance

20pF

Voltage - Rated DC

40V

Max Power Dissipation

330mW

Terminal Position

END

Terminal Form

WRAP AROUND

Peak Reflow Temperature (Cel)

260

Current Rating

350mA

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

TMMBAT4

Polarity

Standard

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

25μA @ 40V

Voltage - Forward (Vf) (Max) @ If

750mV @ 200mA

Current - Output

350mA

Case Connection

ISOLATED

Forward Current

350mA

Max Reverse Leakage Current

25μA

Operating Temperature - Junction

-65°C~125°C

Max Surge Current

7.5A

Current - Average Rectified (Io)

350mA DC

Forward Voltage

900mV

Max Reverse Voltage (DC)

40V

Average Rectified Current

350mA

Reverse Recovery Time

10 ns

Peak Reverse Current

25μA

Max Repetitive Reverse Voltage (Vrrm)

40V

Capacitance @ Vr, F

20pF @ 0V 1MHz

Peak Non-Repetitive Surge Current

7.5A

Reverse Voltage

40V

Max Forward Surge Current (Ifsm)

1.5A

Recovery Time

10 ns

Outside Diameter

1.62 mm

Max Junction Temperature (Tj)

125°C

Width

1.62mm

Length

3.4mm

Height

1.62mm

RoHS Status

ROHS3 Compliant

Radiation Hardening

No

REACH SVHC

No SVHC

Lead Free

Lead Free
