Factory Lead Time

6 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

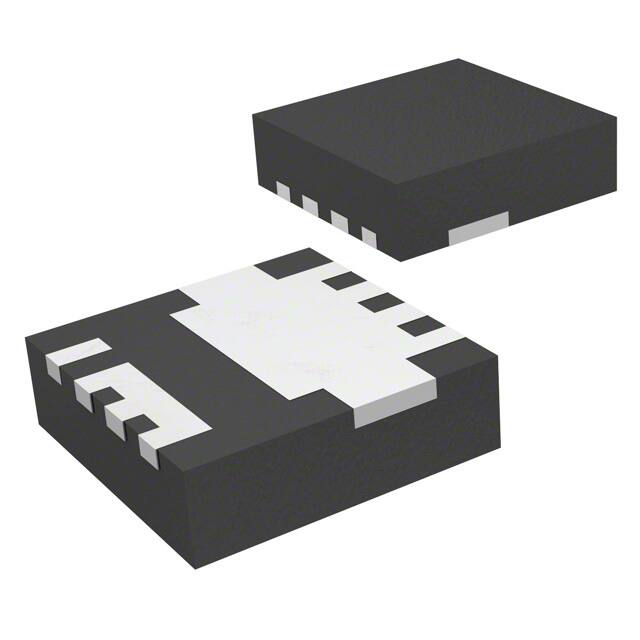

Package / Case

8-PowerTDFN

Number of Pins

8

Diode Element Material

SILICON

Operating Temperature (Max)

150°C

Operating Temperature (Min)

-65°C

Number of Elements

1

Packaging

Cut Tape (CT)

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Applications

FAST RECOVERY POWER

Additional Feature

FREE WHEELING DIODE

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

STPS8L

JESD-30 Code

R-PDSO-F3

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

1mA @ 30V

Voltage - Forward (Vf) (Max) @ If

500mV @ 8A

Case Connection

CATHODE

Forward Current

8A

Max Reverse Leakage Current

1mA

Operating Temperature - Junction

150°C Max

Max Surge Current

100A

Forward Voltage

570mV

Max Reverse Voltage (DC)

30V

Average Rectified Current

8A

Number of Phases

1

Peak Reverse Current

1mA

Max Repetitive Reverse Voltage (Vrrm)

30V

Peak Non-Repetitive Surge Current

100A

Max Forward Surge Current (Ifsm)

100A

Height

1.05mm

Length

3.4mm

Width

3.4mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
