Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

15 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

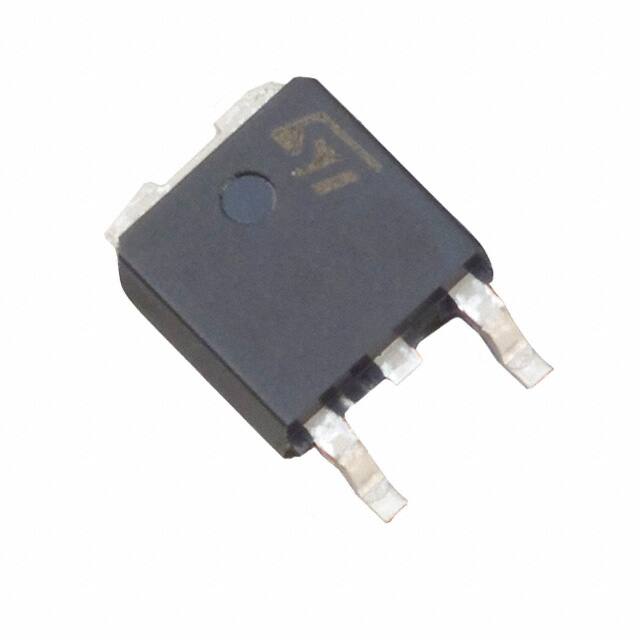

Package / Case

TO-252-3, DPak (2 Leads + Tab), SC-63

Number of Pins

3

Weight

350.003213mg

Diode Element Material

SILICON

Number of Elements

1

Packaging

Cut Tape (CT)

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Max Operating Temperature

150°C

Min Operating Temperature

-40°C

Applications

HIGH POWER

Terminal Form

GULL WING

Base Part Number

STPS8L

Reference Standard

AEC-Q101

JESD-30 Code

R-PSSO-G2

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

1mA @ 30V

Voltage - Forward (Vf) (Max) @ If

490mV @ 8A

Forward Current

8A

Operating Temperature - Junction

-40°C~150°C

Forward Voltage

630mV

Max Reverse Voltage (DC)

30V

Average Rectified Current

8A

Number of Phases

1

Peak Reverse Current

40mA

Max Repetitive Reverse Voltage (Vrrm)

30V

Peak Non-Repetitive Surge Current

75A

Max Forward Surge Current (Ifsm)

75A

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
