Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

8 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

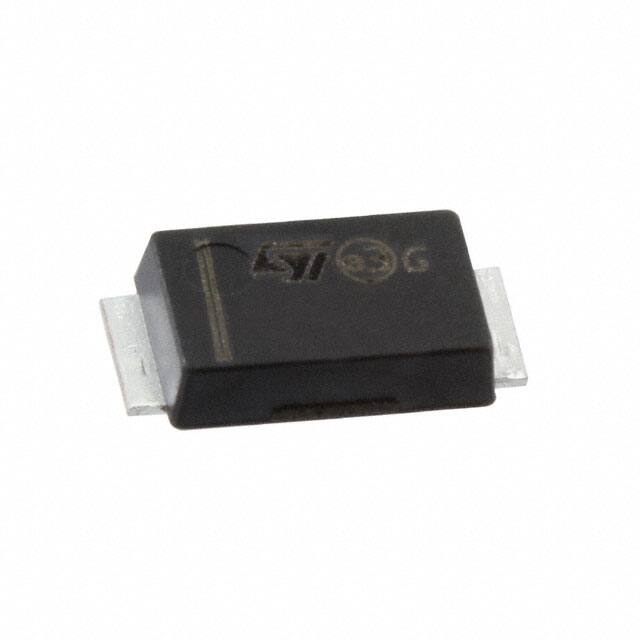

Package / Case

SOD-128

Diode Element Material

SILICON

Number of Elements

1

Operating Temperature (Max.)

175°C

Packaging

Tape & Reel (TR)

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

Applications

HIGH VOLTAGE POWER

Additional Feature

LOW LEAKAGE CURRENT

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STPS360

JESD-30 Code

R-PDSO-F2

Configuration

SINGLE

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

150μA @ 60V

Voltage - Forward (Vf) (Max) @ If

610mV @ 3A

Forward Current

3A

Operating Temperature - Junction

-40°C~175°C

Voltage - DC Reverse (Vr) (Max)

60V

Number of Phases

1

Rep Pk Reverse Voltage-Max

60V

Reverse Current-Max

150μA

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
