Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

15 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

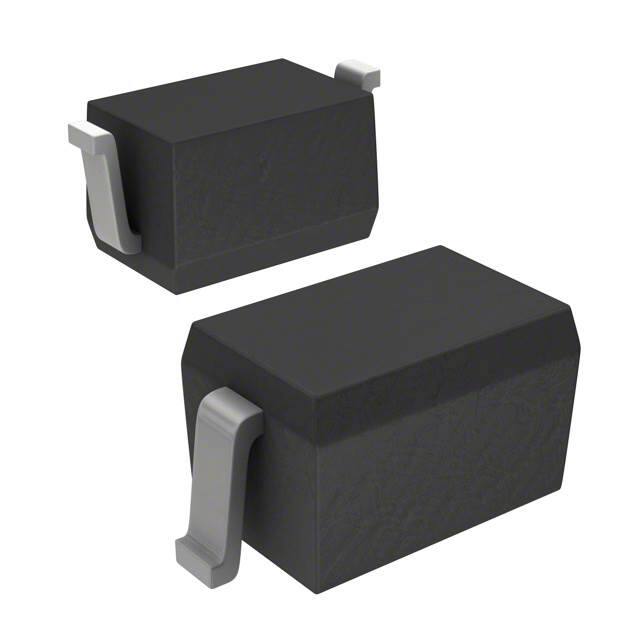

Package / Case

SC-76, SOD-323

Number of Pins

2

Weight

4.535924g

Diode Element Material

SILICON

Number of Elements

1

Power Dissipation (Max)

0.31W

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Max Operating Temperature

150°C

Min Operating Temperature

-65°C

Applications

GENERAL PURPOSE

HTS Code

8541.10.00.80

Voltage - Rated DC

10V

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Current Rating

3A

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

BAT60

Pin Count

2

Polarity

Standard

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

6μA @ 10V

Output Current

3A

Voltage - Forward (Vf) (Max) @ If

580mV @ 1A

Forward Current

3A

Max Reverse Leakage Current

7.5μA

Operating Temperature - Junction

150°C Max

Max Surge Current

5A

Current - Average Rectified (Io)

3A DC

Forward Voltage

580mV

Max Reverse Voltage (DC)

10V

Average Rectified Current

3A

Number of Phases

1

Peak Reverse Current

7.5μA

Max Repetitive Reverse Voltage (Vrrm)

10V

Peak Non-Repetitive Surge Current

5A

Max Forward Surge Current (Ifsm)

5A

Max Junction Temperature (Tj)

150°C

Height

1.17mm

Length

1.8mm

Width

1.45mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
