Lifecycle Status

NRND (Last Updated: 7 months ago)

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

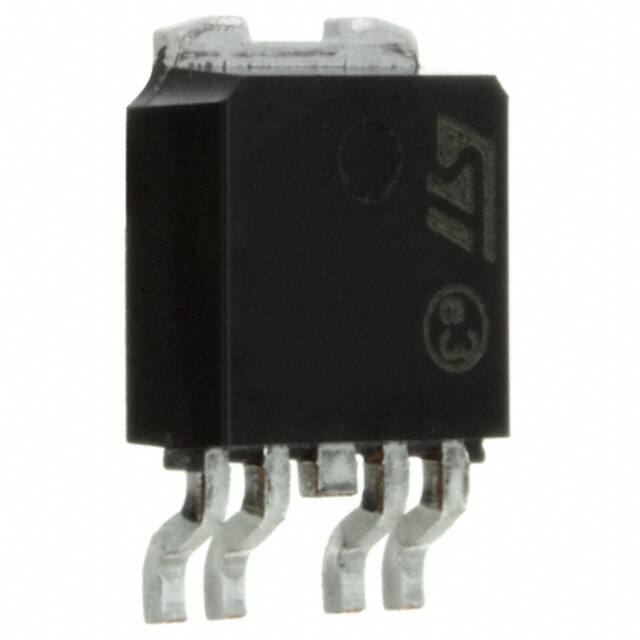

Package / Case

TO-252-5, DPak (4 Leads + Tab), TO-252AD

Number of Pins

5

Operating Temperature

-25°C~125°C

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Packing Method

TAPE AND REEL

Terminal Position

SINGLE

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

LD49150

Pin Count

3

JESD-30 Code

R-PSSO-G4

Current - Supply (Max)

6mA

Number of Outputs

1

Voltage - Input (Max)

5.5V

Output Voltage

1V

Output Type

Fixed

Max Output Current

1.5A

Output Configuration

Positive

Control Features

Enable

Accuracy

1.5 %

Output Voltage 1

1V

Number of Regulators

1

Min Input Voltage

1.4V

Protection Features

Over Current, Over Temperature

Current - Quiescent (Iq)

4mA

Voltage Dropout (Max)

0.2V @ 1.5A

PSRR

68dB (120Hz)

Reference Voltage

812mV

Dropout Voltage

1.5V

Dropout Voltage1-Nom

1.5V

Voltage Tolerance-Max

3%

Min Current Limit

2.5A

Input Voltage Absolute-Max

7V

Output Voltage Accuracy

1.5 %

Height Seated (Max)

2.63mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
