Factory Lead Time

12 Weeks

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

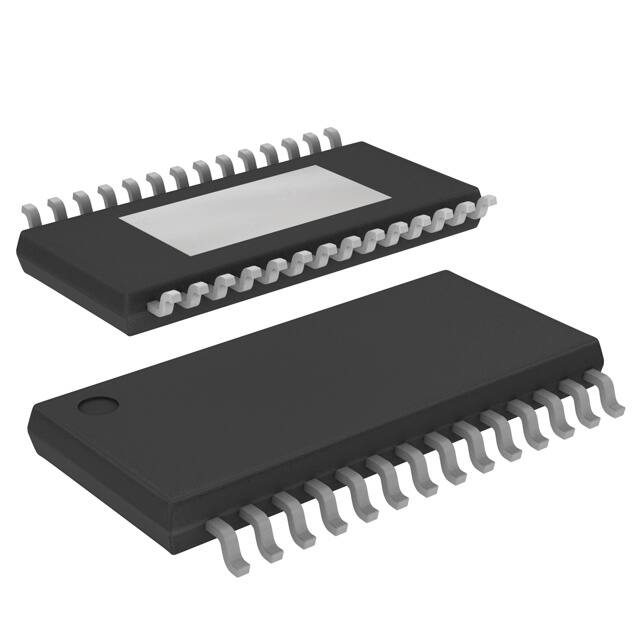

Package / Case

28-TSSOP (0.173, 4.40mm Width) Exposed Pad

Mounting Type

Surface Mount

Mount

Surface Mount

Number of Pins

28

Series

STSPIN L64

Packaging

Tape & Reel (TR)

Operating Temperature

-40°C~150°C TJ

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

28

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Applications

General Purpose

Max Power Dissipation

5W

Voltage - Supply

3.3V 5V

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Supply Voltage

36V

Terminal Pitch

0.65mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

L6470

Function

Driver - Fully Integrated, Control and Power Stage

Number of Outputs

1

Output Voltage

45V

Max Output Current

3A

Power Supplies

3.3/5V

Supply Voltage-Min (Vsup)

8V

Interface

SPI

Nominal Supply Current

3.7mA

Output Configuration

Half Bridge (4)

Supply Current-Max (Isup)

0.65mA

Voltage - Load

8V~45V

Max Junction Temperature (Tj)

150°C

Motor Type

Stepper

Motor Type - Stepper

Bipolar

Step Resolution

1 ~ 1/128

Width

4.4mm

Length

9.7mm

Height

1.2mm

RoHS Status

ROHS3 Compliant

Radiation Hardening

No

Lead Free

Lead Free
