Lifecycle Status

ACTIVE (Last Updated: 6 months ago)

Factory Lead Time

10 Weeks

Mounting Type

Surface Mount

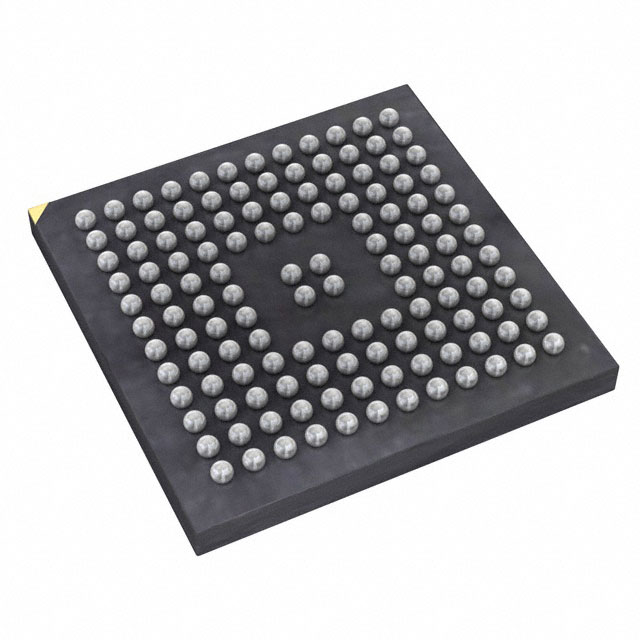

Package / Case

132-UFBGA

Surface Mount

YES

Number of Pins

132

Data Converters

A/D 40x12b; D/A 2x12b

Number of I/Os

109

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

STM32L1

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

132

Max Power Dissipation

290mW

Terminal Position

BOTTOM

Terminal Form

BALL

Supply Voltage

3V

Terminal Pitch

0.5mm

Frequency

32MHz

Base Part Number

STM32L162

Supply Voltage-Max (Vsup)

3.6V

Power Supplies

2/3.3V

Supply Voltage-Min (Vsup)

1.8V

Interface

I2C, I2S, IrDA, LIN, SPI, UART, USART, USB

Memory Size

384kB

Oscillator Type

Internal

RAM Size

48K x 8

Voltage - Supply (Vcc/Vdd)

1.8V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

ARM® Cortex®-M3

Peripherals

Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

384KB 384K x 8

Connectivity

I2C, IrDA, LINbus, SPI, UART/USART, USB

Supply Current-Max

12.3mA

Bit Size

32

Has ADC

YES

DMA Channels

YES

Data Bus Width

32b

PWM Channels

YES

Number of Timers/Counters

9

Address Bus Width

26

Core Architecture

ARM

EEPROM Size

12K x 8

CPU Family

CORTEX-M3

Length

7mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
