Contact Plating

Copper, Silver, Tin

Mount

Surface Mount

Mounting Type

Surface Mount

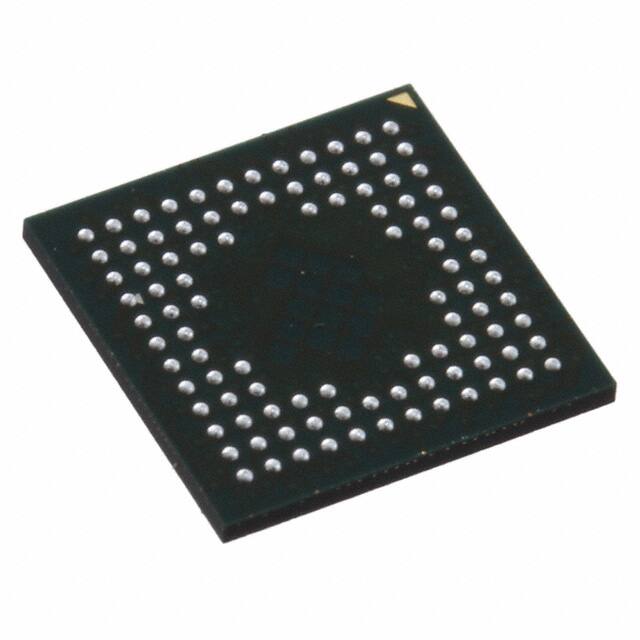

Package / Case

100-UFBGA

Number of Pins

100

Data Converters

A/D 1x12b, 1x16b; D/A 1x12b

Power Dissipation (Max)

434mW

Number of I/Os

84

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

STM32F3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

100

HTS Code

8542.31.00.01

Voltage - Supply

2V~3.6V

Terminal Position

BOTTOM

Terminal Form

BALL

Terminal Pitch

0.5mm

Reach Compliance Code

unknown

Frequency

72MHz

Base Part Number

STM32F372

Qualification Status

Not Qualified

Power Supplies

2.5/3.3V

Interface

CAN, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB

Memory Size

256kB

Oscillator Type

Internal

RAM Size

32K x 8

Core Processor

ARM® Cortex®-M4

Peripherals

DMA, I2S, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

256KB 256K x 8

Connectivity

CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB

Supply Current-Max

75.7mA

Bit Size

32

Data Bus Width

32b

Number of Timers/Counters

14

Core Architecture

ARM

CPU Family

CORTEX-M4F

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
