Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

10 Weeks

Mounting Type

Surface Mount

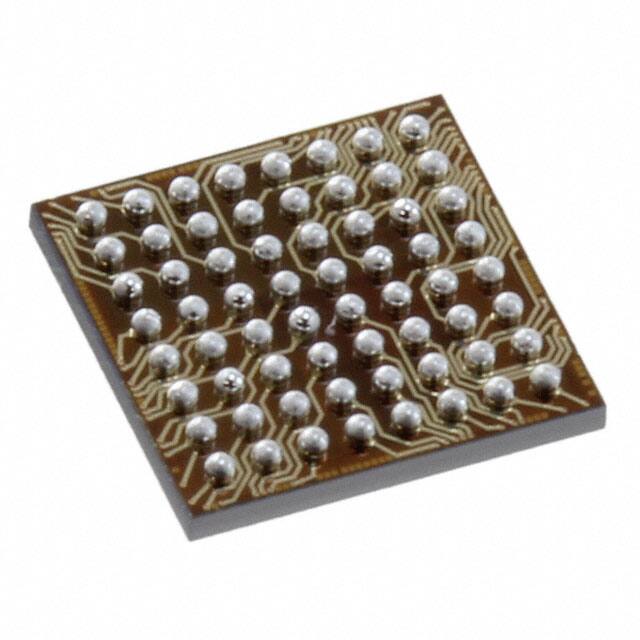

Package / Case

64-UFBGA, WLCSP

Surface Mount

YES

Number of Pins

64

Data Converters

A/D 16x12b; D/A 2x12b

Number of I/Os

51

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Series

STM32F1

JESD-609 Code

e1

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

64

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Position

BOTTOM

Terminal Form

BALL

Supply Voltage

3.3V

Terminal Pitch

0.5mm

Frequency

72MHz

Base Part Number

STM32F103

Pin Count

64

Supply Voltage-Min (Vsup)

2V

Interface

CAN, I2C, IrDA, LIN, SPI, UART, USART, USB

Memory Size

256kB

Oscillator Type

Internal

RAM Size

48K x 8

Voltage - Supply (Vcc/Vdd)

2V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

ARM® Cortex®-M3

Peripherals

DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

256KB 256K x 8

Connectivity

CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB

Supply Current-Max

69mA

Bit Size

32

Has ADC

YES

DMA Channels

YES

Data Bus Width

32b

PWM Channels

YES

Number of Timers/Counters

8

Core Architecture

ARM

Boundary Scan

YES

Low Power Mode

YES

Format

FIXED POINT

Integrated Cache

NO

Number of ADC Channels

16

Number of External Interrupts

16

Number of I2C Channels

2

Number of SPI Channels

3

Number of USB Channels

1

Height

1.45mm

Length

10.2mm

Width

10.2mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
