Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

10 Weeks

Surface Mount

YES

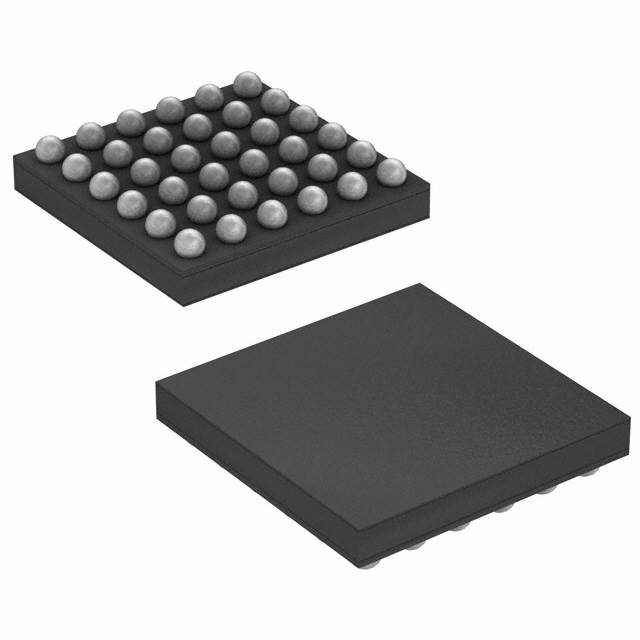

Package / Case

36-UFBGA, WLCSP

Mounting Type

Surface Mount

Number of Pins

36

Data Converters

A/D 10x12b

Watchdog Timers

Yes

Number of I/Os

29

Series

STM32L0

Packaging

Tape & Reel (TR)

Operating Temperature

-40°C~85°C TA

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

36

ECCN Code

3A991.A.2

Max Power Dissipation

318mW

Terminal Position

BOTTOM

Terminal Form

BALL

Supply Voltage

3V

Terminal Pitch

0.4mm

Frequency

32MHz

Base Part Number

STM32L051

Supply Voltage-Max (Vsup)

3.6V

Interface

I2C, I2S, SPI, UART, USART

Memory Size

64kB

Oscillator Type

Internal

RAM Size

8K x 8

Voltage - Supply (Vcc/Vdd)

1.65V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

ARM® Cortex®-M0+

Peripherals

Brown-out Detect/Reset, DMA, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

64KB 64K x 8

Connectivity

I2C, IrDA, SPI, UART/USART

Supply Current-Max

6.8mA

Bit Size

32

Has ADC

YES

DMA Channels

YES

Data Bus Width

32b

PWM Channels

YES

DAC Channels

NO

Number of Timers/Counters

5

Core Architecture

ARM

EEPROM Size

2K x 8

On Chip Program ROM Width

8

CPU Family

CORTEX-M0

Boundary Scan

NO

Low Power Mode

YES

Integrated Cache

NO

Number of DMA Channels

7

Length

2.88mm

RoHS Status

RoHS Compliant

REACH SVHC

No SVHC
