Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

10 Weeks

Mounting Type

Surface Mount

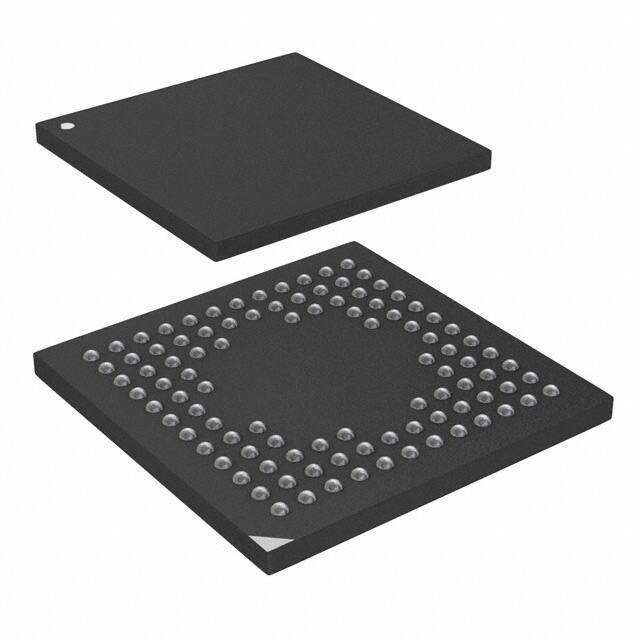

Package / Case

100-UFBGA

Surface Mount

YES

Number of Pins

100

Data Converters

A/D 24x12b; D/A 2x12b

Number of I/Os

83

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

STM32L1

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

100

ECCN Code

3A991.A.2

Max Power Dissipation

339mW

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Supply Voltage

3V

Terminal Pitch

0.5mm

Frequency

32MHz

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STM32L151

Supply Voltage-Max (Vsup)

3.6V

Interface

I2C, IrDA, LIN, SPI, UART, USART, USB

Memory Size

128kB

Oscillator Type

Internal

RAM Size

32K x 8

Voltage - Supply (Vcc/Vdd)

1.8V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

ARM® Cortex®-M3

Peripherals

Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

128KB 128K x 8

Connectivity

I2C, IrDA, LINbus, SPI, UART/USART, USB

Bit Size

32

Has ADC

YES

DMA Channels

YES

Data Bus Width

32b

PWM Channels

YES

DAC Channels

YES

Number of Timers/Counters

8

Core Architecture

ARM

EEPROM Size

4K x 8

Length

7mm

Height Seated (Max)

0.6mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
