Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

10 Weeks

Mounting Type

Surface Mount

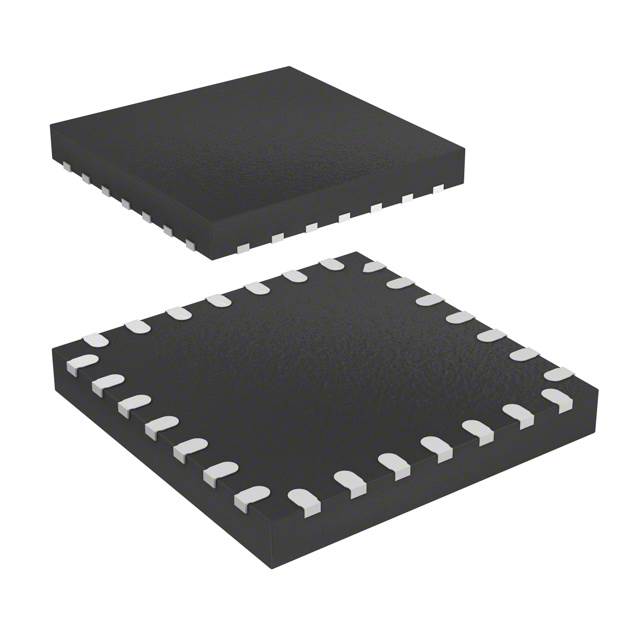

Package / Case

28-UFQFN

Surface Mount

YES

Number of Pins

28

Data Converters

A/D 13x12b

Number of I/Os

24

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

STM32F0

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

28

ECCN Code

3A991.A.2

HTS Code

8542.31.00.01

Max Power Dissipation

170mW

Terminal Position

QUAD

Supply Voltage

3.3V

Terminal Pitch

0.5mm

Frequency

48MHz

Base Part Number

STM32F04

Power Supplies

2.5/3.3V

Supply Voltage-Min (Vsup)

2V

Interface

CAN, HDMI, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB

Memory Size

16kB

Oscillator Type

Internal

RAM Size

6K x 8

Voltage - Supply (Vcc/Vdd)

1.65V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

ARM® Cortex®-M0

Peripherals

DMA, I2S, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

16KB 16K x 8

Connectivity

CANbus, HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB

Supply Current-Max

23.4mA

Bit Size

32

Has ADC

YES

DMA Channels

YES

Data Bus Width

32b

PWM Channels

YES

DAC Channels

NO

Number of Timers/Counters

6

Core Architecture

ARM

On Chip Program ROM Width

8

CPU Family

CORTEX-M0

Length

4mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
