Lifecycle Status

ACTIVE (Last Updated: 6 months ago)

Factory Lead Time

8 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

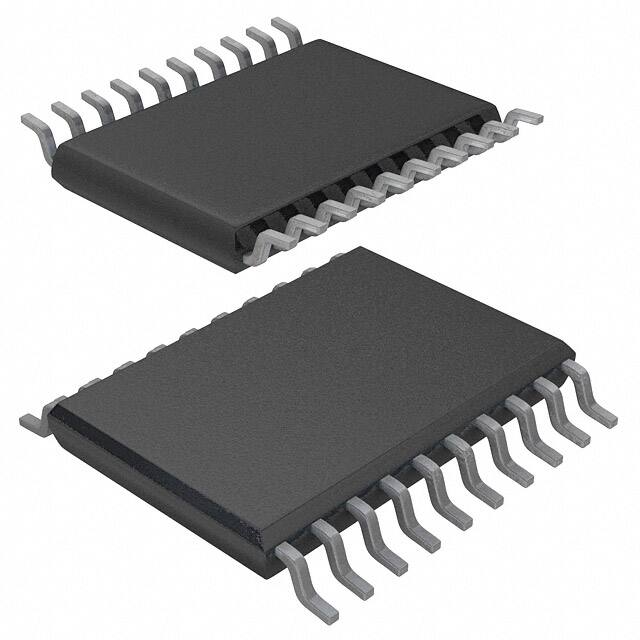

Package / Case

20-TSSOP (0.173, 4.40mm Width)

Number of Pins

20

Data Converters

A/D 10x12b

Number of I/Os

18

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tube

Series

STM8L EnergyLite

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

20

ECCN Code

EAR99

Max Power Dissipation

181mW

Terminal Position

DUAL

Terminal Form

GULL WING

Supply Voltage

3V

Terminal Pitch

0.65mm

Frequency

16MHz

Base Part Number

STM8L

Interface

I2C, IrDA, SPI, UART, USART

Memory Size

8kB

Oscillator Type

Internal

RAM Size

1K x 8

Voltage - Supply (Vcc/Vdd)

1.8V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER

Core Processor

STM8

Peripherals

Brown-out Detect/Reset, DMA, IR, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

8-Bit

Program Memory Size

8KB 8K x 8

Connectivity

I2C, IrDA, SPI, UART/USART

Supply Current-Max

4.75mA

Bit Size

8

Has ADC

YES

DMA Channels

YES

Data Bus Width

8b

Number of Timers/Counters

3

EEPROM Size

256 x 8

Number of ADC Channels

10

Number of PWM Channels

2

Number of I2C Channels

1

Height

1.05mm

Length

6.6mm

Width

4.5mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
