Mount

Surface Mount

Package / Case

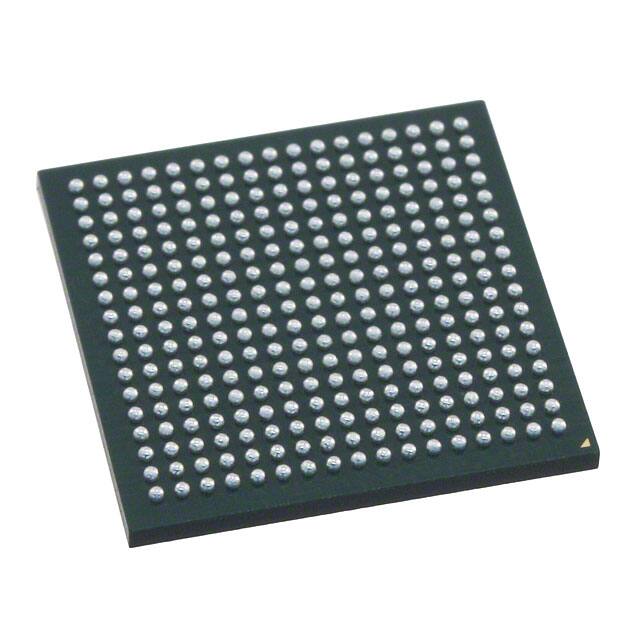

289-LFBGA

Number of Pins

289

Number of I/Os

102

Operating Temperature

-40°C~85°C TC

Packaging

Tray

Series

SPEAr®

JESD-609 Code

e1

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

289

ECCN Code

5A002.A.4

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

HTS Code

8542.31.00.01

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Supply Voltage

1.2V

Terminal Pitch

0.8mm

Frequency

333MHz

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

SPEAR310

Pin Count

289

Operating Supply Voltage

1.2V

Power Supplies

1.21.83.3V

Voltage

3.6V

Interface

I2C, Serial, UART, USB

Max Supply Voltage

2.5V

Min Supply Voltage

1.14V

Memory Size

32kB

RAM Size

8kB

uPs/uCs/Peripheral ICs Type

MICROPROCESSOR, RISC

Core Processor

ARM926EJ-S

Bit Size

32

Data Bus Width

16b

Number of Timers/Counters

6

Core Architecture

ARM

Boundary Scan

YES

Low Power Mode

YES

Format

FIXED POINT

Integrated Cache

YES

Voltage - I/O

3.3V

Ethernet

10/100Mbps (5)

Number of Cores/Bus Width

1 Core 32-Bit

Graphics Acceleration

No

RAM Controllers

LPDDR, DDR2

USB

USB 2.0 + PHY (3)

Additional Interfaces

HDLC, I2C, I2S, IrDA, Microwire, MMC/SDIO, SPI, TDM/E1, UART

Co-Processors/DSP

Security; C3

Security Features

Cryptography

Length

15mm

Height Seated (Max)

1.7mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
