Lifecycle Status

ACTIVE (Last Updated: 6 months ago)

Factory Lead Time

24 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

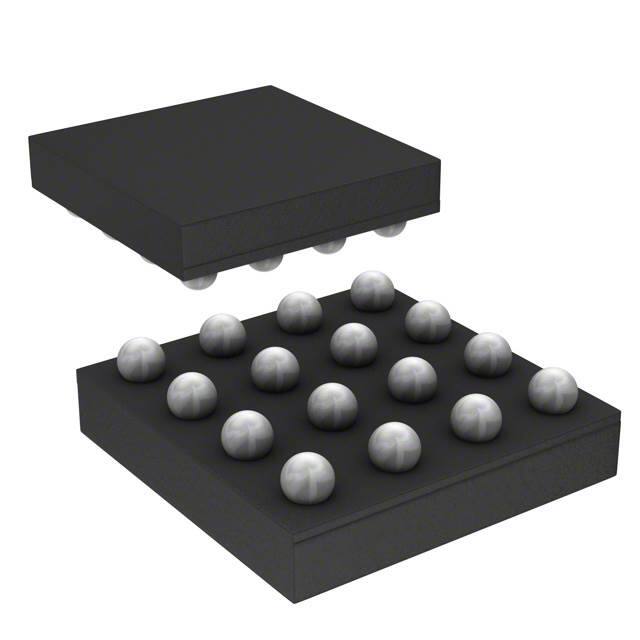

Package / Case

16-UFBGA, FCBGA

Number of Pins

16

Packaging

Tape & Reel (TR)

Operating Temperature

-40°C~85°C TA

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

16

Termination

SMD/SMT

ECCN Code

EAR99

Type

Class D

HTS Code

8542.33.00.01

Voltage - Supply

2.5V~5.5V

Terminal Position

BOTTOM

Terminal Form

BALL

Number of Functions

1

Terminal Pitch

0.5mm

Base Part Number

TS2012

Pin Count

16

Output Type

2-Channel (Stereo)

Supply Voltage-Max (Vsup)

5.5V

Power Supplies

3/5V

Supply Voltage-Min (Vsup)

2.5V

Number of Channels

2

Nominal Supply Current

5mA

Output Power

2.5W

Bandwidth

20 kHz

Voltage Gain

24dB

Power Supply Rejection Ratio (PSRR)

65dB

Max Output Power

2.5W

Max Output Power x Channels @ Load

2.5W x 1 @ 8 Ω

Features

Depop, Differential Inputs, Short-Circuit and Thermal Protection, Standby

Length

2.1mm

Width

2.1mm

RoHS Status

ROHS3 Compliant

Radiation Hardening

No

REACH SVHC

No SVHC
