Lifecycle Status

ACTIVE (Last Updated: 4 days ago)

Factory Lead Time

6 Weeks

Contact Plating

Gold

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

20-WFQFN Exposed Pad

Number of Pins

20

Interface Standards

GENERAL PURPOSE

Current - Supply (Nom)

8mA

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Series

DirectPath™

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

2 (1 Year)

Number of Terminations

20

ECCN Code

EAR99

Type

Class AB

HTS Code

8542.39.00.01

Voltage - Supply

1.8V~4.5V

Terminal Position

QUAD

Peak Reflow Temperature (Cel)

260

Number of Functions

2

Supply Voltage

3.3V

Terminal Pitch

0.5mm

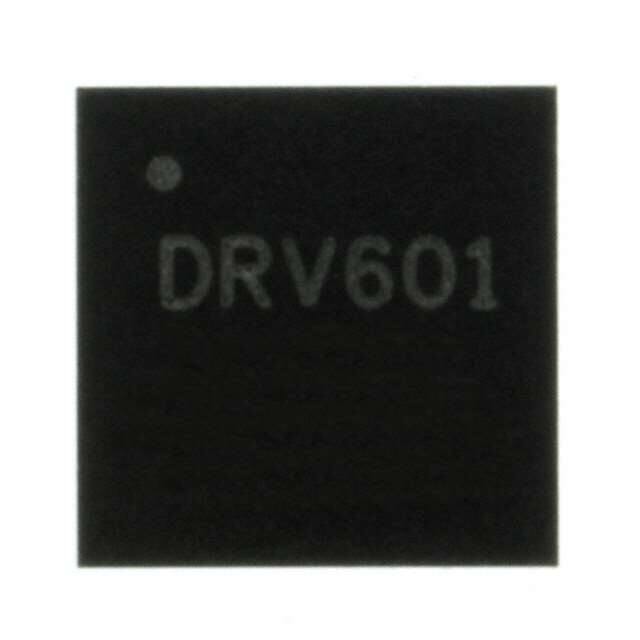

Base Part Number

DRV601

Pin Count

20

Output Type

2-Channel (Stereo)

Power Supplies

3.3V

Quiescent Current

8mA

Differential Output

NO

Output Polarity

TRUE

Input Characteristics

STANDARD

Driver Number of Bits

1

Supply Voltage1-Nom

3.3V

Out Swing-Min

6.15 V

High Level Input Current-Max

0.000001A

Features

Depop, Short-Circuit and Thermal Protection, Shutdown

Height

800μm

Length

4mm

Width

4mm

Thickness

730μm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
