Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

8 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

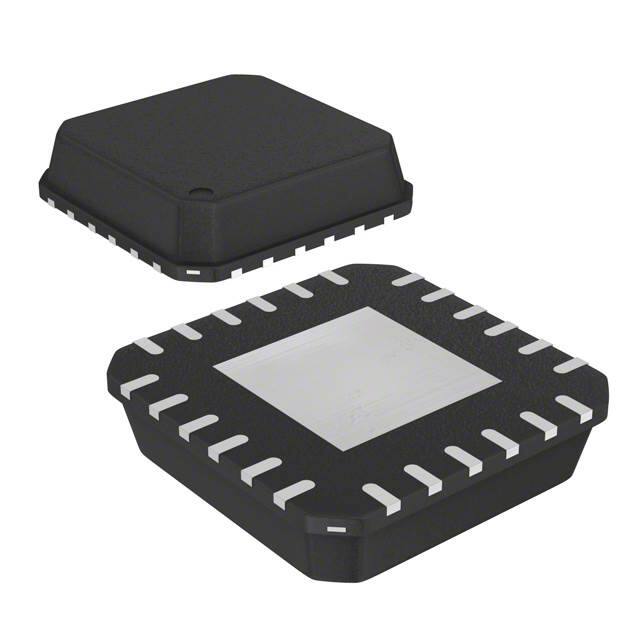

Package / Case

24-VFQFN Exposed Pad

Number of Pins

24

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

24

ECCN Code

EAR99

Type

Class AB

Terminal Finish

Matte Tin (Sn) - annealed

Voltage - Supply

2.2V~5.5V

Terminal Position

QUAD

Number of Functions

1

Terminal Pitch

0.5mm

Base Part Number

TS472

Pin Count

24

Output Type

1-Channel (Mono)

Operating Supply Voltage

5V

Supply Voltage-Min (Vsup)

2.2V

Number of Channels

1

Nominal Supply Current

2.4mA

Max Supply Current

2.4mA

Output Power

120W

Supply Type

Single

Bandwidth

20 kHz

Voltage Gain

41dB

Power Supply Rejection Ratio (PSRR)

80dB

Gain

41 dB

Features

Differential Inputs, Microphone, Shutdown, Standby

Length

4mm

Width

4mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
