LPS25HBTR - STMicroelectronics

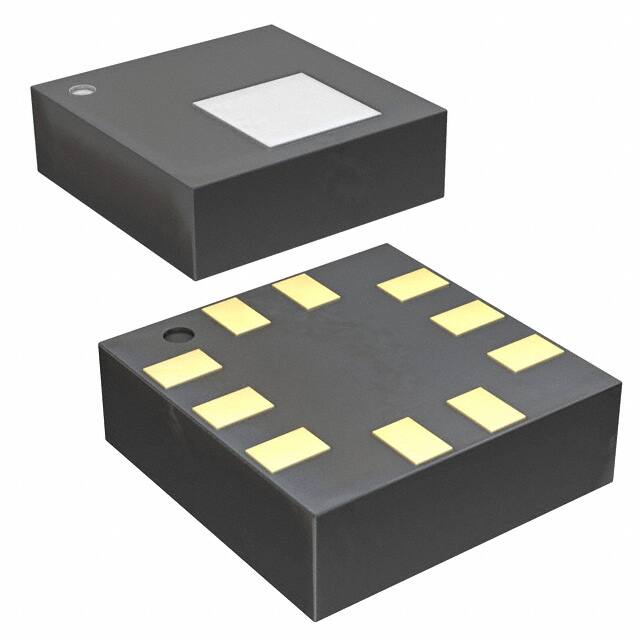

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY39-LPS25HBTR

Hersteller Teil #: LPS25HBTR

Produktkategorie: Pressure Sensors, Transducers

Hersteller: STMicroelectronics

Beschreibung: IC MEMS PRESSURE SENSOR 10HCLGA

Verpackung: 10-VFLGA

Menge:

Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform

Vorlaufzeit: 3(168 Hours)

Datenblatt: datasheet

LPS25HBTR Datenblatt

Attribute

Attribute Value

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

16 Weeks

Contact Plating

Gold

Mount

Surface Mount

Package / Case

10-VFLGA

Number of Pins

Operating Temperature

-30°C~105°C

Packaging

Tape & Reel (TR)

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Termination

Solder

ECCN Code

EAR99

Applications

Board Mount

Voltage - Supply

1.7V~3.6V

Base Part Number

LPS25

Output

24 b

Termination Style

SMD (SMT) Tab

Body Length or Diameter

2.5mm

Body Breadth

2.5 mm

Output Type

I2C, SPI

Number of Bits

Accuracy

±0.003PSI (±0.02kPa)

Operating Pressure

3.77PSI ~ 18.27PSI (26kPa ~ 126kPa)

Pressure Type

Absolute

Port Style

No Port

Maximum Pressure

290.08PSI (2000kPa)

Sensors/Transducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Max Pressure

290.08 PSI

Pressure Range-Max

18.27 Psi

Features

Temperature Compensated

Body Height

0.8mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Teilenummer	Paket	Beschreibung
LPS25HBTR	10-VFLGA	IC MEMS PRESSURE SENSOR 10HCLGA
MPL115A2T1	8-TLGA	IC BAROMETER I2C DGTL MINI 8-LGA
MPL115A1T1	8-TLGA	NXP MPL115A1T1 PRESS SENSOR, SPI DIGITAL BAROMETER, LGA-8
MPL115A1	8-TLGA	IC, MINI SPI DIGITAL BAROMETER, 50 to 11
MPXAZ4115A6U	8-SMD Module	Pressure Sensor 2.18 PSI ~ 16.68 PSI (15 kPa ~ 115 kPa) Absolute0.2 V ~ 4.8 V 8-SMD Module

LPS25HBTR Preis
LPS25HBTR Verteilers
LPS25HBTR Hersteller
LPS25HBTR Technische Daten
LPS25HBTR PDF
LPS25HBTR Datenblätter
LPS25HBTR Bild
LPS25HBTR Foto
LPS25HBTR Teil
LPS25HBTR Lagerbestand
LPS25HBTR Inventar
LPS25HBTR Angebotsanfrage
Kaufen LPS25HBTR
LPS25HBTR Anfrage
LPS25HBTR Onlinebestellung

Suchen Sie nach anderen Teilen wie LPS25

What is MEMS pressure sensor?

MEMS pressure sensors combine a pressure sensing element with a digital conditioning chip, digitally adjusting the drift, sensitivity, and linearity parameters. This pressure sensor generates a calibrated and compensated standard voltage signal based on the voltage power supply.

What is MEMS capacitive pressure sensor?

Using post-CMOS MEMS technologies, the capacitive pressure sensor is built on a CMOS chip. To detect capacitance change at varied ambient pressures, the suggested device consists of a square sensing capacitor, a reference capacitor, and readout circuitry based on a switched-capacitor scheme.

What are MEMS used for?

MEMS is a process technology used to manufacture tiny integrated devices or systems that combine mechanical and electrical components. They are made utilizing batch processing integrated circuit (IC) processes and can range in size from a few micrometers to millimeters.
