Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

9 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

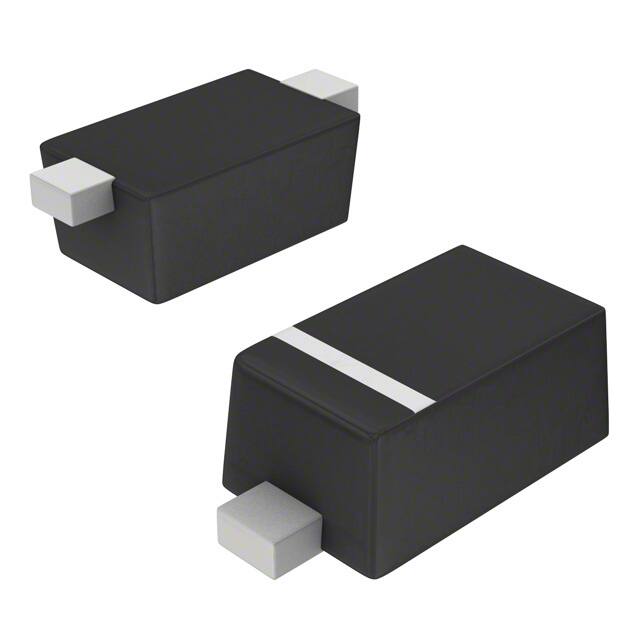

Package / Case

SC-79, SOD-523

Number of Pins

2

Diode Element Material

SILICON

Breakdown Voltage / V

12V

Number of Elements

1

Reverse Stand-off Voltage

10V

Operating Temperature

-40°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

ESDA, TRANSIL™

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

Termination

SMD/SMT

ECCN Code

EAR99

Type

Zener

Terminal Finish

Matte Tin (Sn)

Applications

General Purpose

Capacitance

150pF

Max Power Dissipation

450W

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

260

Depth

800μm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

ESDA12

Pin Count

2

Working Voltage

10V

Polarity

Unidirectional

Leakage Current

500nA

Element Configuration

Single

Power Line Protection

No

Current - Peak Pulse (10/1000μs)

16A 8/20μs

Clamping Voltage

28V

Peak Pulse Current

16A

Peak Pulse Power

450W

Unidirectional Channels

1

Capacitance @ Frequency

150pF @ 1MHz

Max Breakdown Voltage

13V

Number of Unidirectional Channels

1

Length

1.2mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
