Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

10 Weeks

Mounting Type

Surface Mount

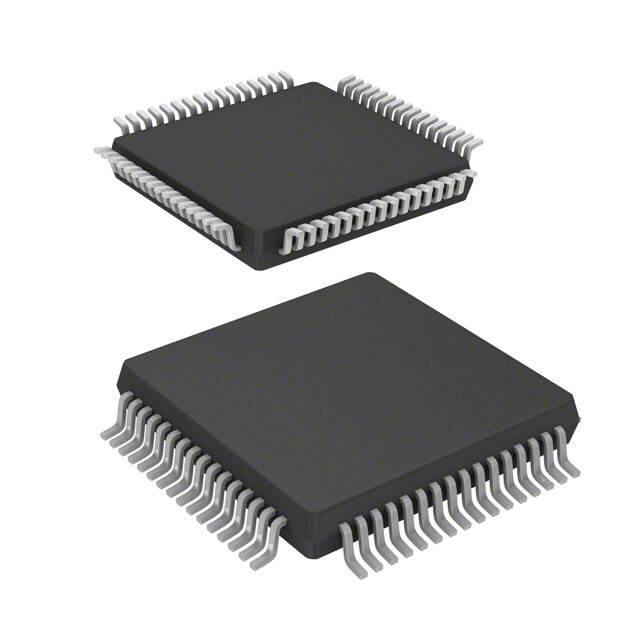

Package / Case

64-LQFP

Surface Mount

YES

Number of Pins

64

Data Converters

A/D 16x12b

Number of I/Os

51

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

STM32F1

JESD-609 Code

e4

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

64

Termination

SMD/SMT

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Max Power Dissipation

444mW

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Supply Voltage

3.3V

Terminal Pitch

0.5mm

Frequency

36MHz

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

STM32F101

Pin Count

64

Supply Voltage-Min (Vsup)

2V

Interface

I2C, IrDA, LIN, SPI, UART, USART

Memory Size

128kB

Oscillator Type

Internal

RAM Size

16K x 8

Voltage - Supply (Vcc/Vdd)

2V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Number of Bits

32

Core Processor

ARM® Cortex®-M3

Peripherals

DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

128KB 128K x 8

Connectivity

I2C, IrDA, LINbus, SPI, UART/USART

Bit Size

32

Has ADC

YES

DMA Channels

YES

Data Bus Width

32b

Number of Timers/Counters

3

Address Bus Width

32b

Density

1 Mb

Core Architecture

ARM

Number of ADC Channels

16

Number of PWM Channels

4

Number of I2C Channels

2

Height

1.45mm

Length

10mm

Width

10mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
