Factory Lead Time

12 Weeks

Mounting Type

Free Hanging (In-Line)

Mount

Free Hanging

Packaging

Bulk

Series

Amphe - PPM® Sealed

Published

2006

Operating Temperature

-40°C~100°C

Part Status

Discontinued

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Solder Cup

ECCN Code

EAR99

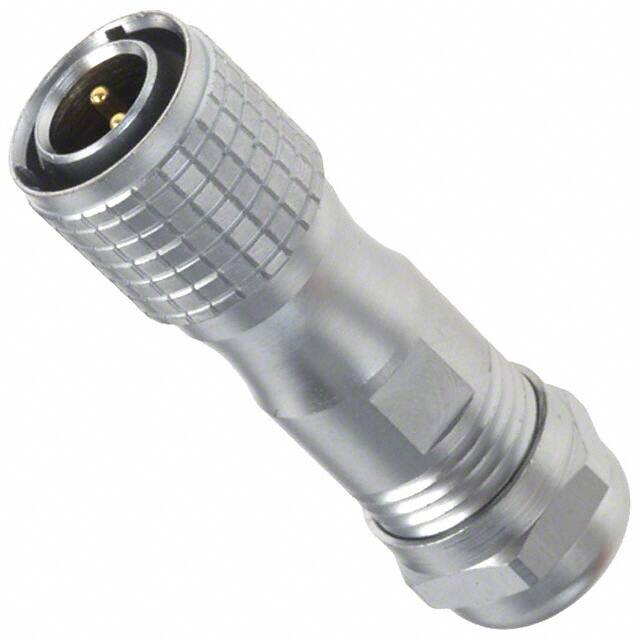

Connector Type

Plug, Male Pins

Number of Positions

2

Color

Silver

Applications

Communication Systems, Instrumentation, Medical, Testing Equipment

Fastening Type

Push-Pull

MIL Conformance

NO

DIN Conformance

NO

IEC Conformance

YES

Filter Feature

NO

Mixed Contacts

NO

Option

GENERAL PURPOSE

Total Number of Contacts

2

Ingress Protection

IP67 - Dust Tight, Waterproof

Reach Compliance Code

unknown

Current Rating

13A

Shell Finish

Nickel

Shell Size - Insert

D

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Gender

Male

Empty Shell

NO

Coupling Type

SNAP

Features

Backshell

RoHS Status

RoHS Compliant

Material Flammability Rating

UL94 V-0

Lead Free

Lead Free

Ratings

Dust Tight, IP67, Waterproof
