Factory Lead Time

12 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

Module

Number of Pins

48

Manufacturer Package Identifier

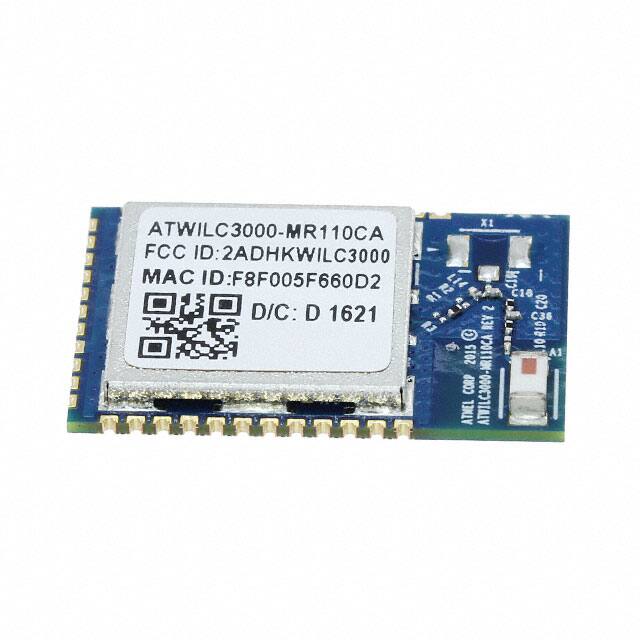

ATWILC3000-MR110CA

Usage Level

Industrial grade

Operating Temperature

-40°C~85°C

Packaging

Tray

Published

2016

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

36

Additional Feature

SEATED HGT-CALCULATED

Voltage - Supply

3.3V

Terminal Position

UNSPECIFIED

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

250

Supply Voltage

3.6V

Frequency

2.4GHz

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

ATWILC3000

JESD-30 Code

R-XXMA-N36

Operating Supply Voltage

3.6V

Number of Channels

1

Interface

I2C, SPI, UART

uPs/uCs/Peripheral ICs Type

MICROPROCESSOR CIRCUIT

Data Rate

65Mbps

Protocol

802.11b/g/n, Bluetooth v4.0

Power - Output

19dBm

RF Family/Standard

Bluetooth, WiFi

Antenna Type

Integrated, Chip

Serial Interfaces

I2C, SPI, UART

Current - Receiving

68mA

Current - Transmitting

230mA

Max Junction Temperature (Tj)

125°C

Sensitivity (dBm)

-98 dBm

Number of GPIO

10

Ambient Temperature Range High

150°C

Height

2.087mm

Length

22.428mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
