Mount

Through Hole

Mounting Type

Through Hole, Right Angle

Package / Case

3-SIP Module

Number of Pins

3

Weight

4.5g

Operating Temperature

-20°C~85°C

Packaging

Tray

Series

PT5040

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Applications

ITE (Commercial)

Max Power Dissipation

11.3W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Depth

25.15mm

Current Rating

750mA

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

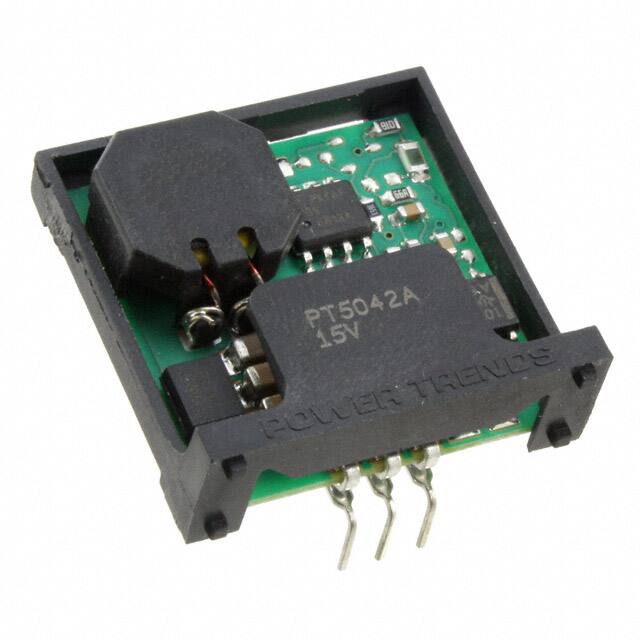

Base Part Number

PT5042

Pin Count

3

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

85%

Voltage - Input (Max)

14V

Output Voltage

15V

Max Output Current

750mA

Voltage - Input (Min)

4.75V

Input Voltage-Nom

5V

Output Current

750mA

Topology

Boost

Control Mode

VOLTAGE-MODE

Switching Frequency-Max

950kHz

Isolation

Non-Isolated

Length

25.65mm

Width

9.65mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
