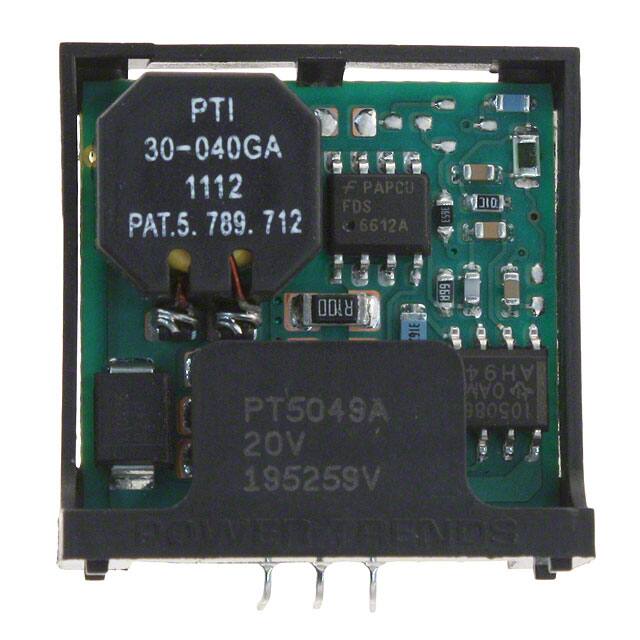

Package / Case

3-SIP Module

Mounting Type

Through Hole, Right Angle

Mount

Through Hole

Number of Pins

3

Series

PT5040

Packaging

Tray

Operating Temperature

-20°C~85°C

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Applications

ITE (Commercial)

Max Power Dissipation

10.8W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Depth

25.15mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

PT5045

Pin Count

3

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

85%

Voltage - Input (Max)

8V

Output Voltage

9V

Max Output Current

1.2A

Voltage - Input (Min)

4.75V

Input Voltage-Nom

5V

Output Current

1.2A

Output Power

10.8W

Topology

Boost

Control Mode

VOLTAGE-MODE

Current - Output 1

1.2A

Switching Frequency-Max

800kHz

Isolation

Non-Isolated

Width

9.65mm

Length

25.65mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
