MP0025 - Bulgin

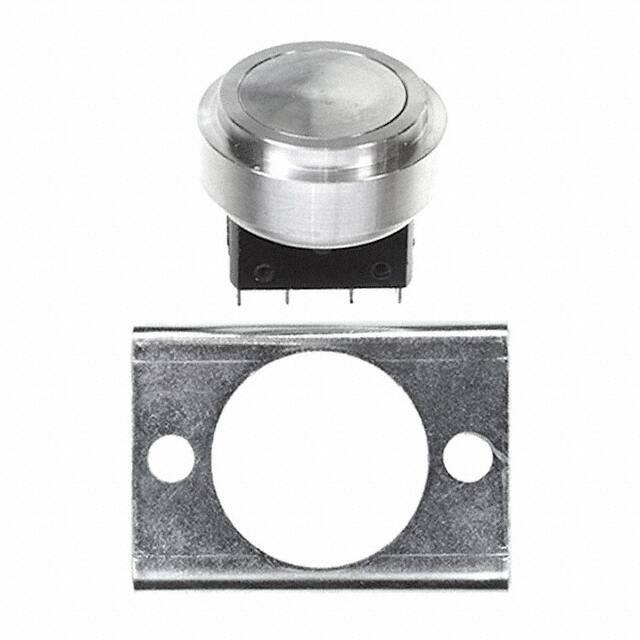

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY42-MP0025

Hersteller Teil #: MP0025

Produktkategorie: Pushbutton Switches

Hersteller: Bulgin

Beschreibung: SWITCH PUSHBUTTON DPST 5A 250V

Verpackung:

Menge:

Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform

Vorlaufzeit: 3(168 Hours)

Datenblatt: datasheet

MP0025 Datenblatt

Attribute

Attribute Value

Mount

Panel

Mounting Type

Panel Mount, Rear

Material

Stainless Steel

Housing Material

Stainless Steel

Actuator Material

Stainless Steel

Contact Materials

Silver

ElectricalLife

35,000 Cycles

Operating Temperature

-20°C~70°C

Packaging

Tray

Published

2003

JESD-609 Code

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

Not Applicable

Termination

Solder

ECCN Code

EAR99

Type

Anti-Vandal

Terminal Finish

Tin (Sn)

HTS Code

8536.50.70.00

Voltage - Rated DC

28V

Current Rating (Amps)

5A AC 2A DC

Orientation

Straight

Depth

30.7mm

Current Rating

Termination Style

Solder Lug

Voltage - Rated AC

250V

Actuator Type

Round, Button, Flush

Circuit

DPST-NO/NC

Switch Function

On-Mom, Off-Mom

Panel Cutout Dimensions

Circular - 22.60mm Dia

Insulation Resistance

1GOhm

Contact Current(DC)-Max

Max Voltage Rating (AC)

250V

Max Current Rating

Dielectric Withstanding Voltage

2000VAC V

Number of Poles

Throw Configuration

SP, SPDT, SPST

Mechanical Life

1,000,000 Cycles

Contact Current Rating

Contact Current(AC)-Max

Contact (AC) Max Rating R Load

5A@250VAC

Contact (DC) Max Rating R Load

2A@28VDC

Outside Diameter

27 mm

Length

42.7mm

Thickness

22mm

Actuator Length

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant

Telefon	Teilenummer	Paket	Beschreibung
	MP0025		SWITCH PUSHBUTTON DPST 5A 250V
	8168SHZQE2		SWITCH PUSHBUTTON SPDT 6A 120V
	8161SHZQE2		SWITCH PUSHBUTTON SPDT 6A 120V
	8168LHZQE2		SWITCH PUSHBUTTON SPDT 6A 120V
	8636AKB		Switch;Pushbutton;Sub-Miniature;Single Pole;Alternate Action

MP0025 Preis
MP0025 Verteilers
MP0025 Hersteller
MP0025 Technische Daten
MP0025 PDF
MP0025 Datenblätter
MP0025 Bild
MP0025 Foto
MP0025 Teil
MP0025 Lagerbestand
MP0025 Inventar
MP0025 Angebotsanfrage
Kaufen MP0025
MP0025 Anfrage
MP0025 Onlinebestellung

Suchen Sie nach anderen Teilen wie mp002

Where are pushbutton switches used?

The push button switches consist mainly of two types – momentary and non-momentary. These switches are ordinarily used in calculators, push-button telephones, kitchen appliances, magnetic locks, and several other mechanical and electronic devices used across homes or industries.

How do pushbutton switches work?

Most push button switches function in the same way. Pressure is placed on the button or actuator, resulting in the depression of the internal spring and contacts and the touching of stable contacts at the bottom of the switch. This process will either close or open the electrical circuit.

What is the use of pushbutton?

The main function of a push button switch is to switch something either on or off, however, there are different types of push button switches and each different type has a different function.
