Factory Lead Time

9 Weeks

Mount

Panel, Snap in

Mounting Type

Panel Mount, Snap-In

Actuator Material

POLYCARBONATE

Center Contact Plating

SILVER

Center Contact Material

COPPER

Terminal Material

COPPER

End Contact Material

COPPER

End Contact Plating

SILVER

ElectricalLife

10,000 Cycles

Insulation Materials

POLYAMIDE

Operating Temperature

-20°C~105°C

Packaging

Bulk

Series

PR1, LAMB

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Quick Connect

ECCN Code

EAR99

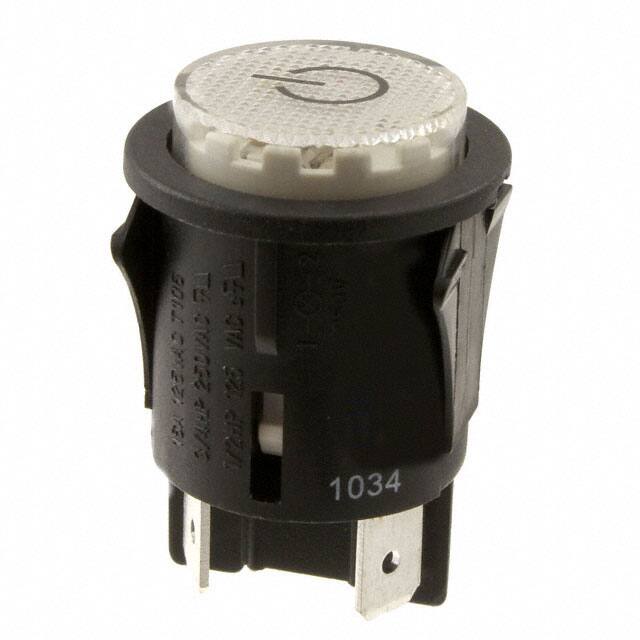

Type

Standard, Illuminated

Current Rating (Amps)

16A AC

Current Rating

16A

Termination Style

Quick Connect - 0.250 (6.3mm)

Voltage - Rated AC

125V

Actuator Type

Round, Button

Circuit

DPST

Switch Function

Off-On

Panel Cutout Dimensions

Circular - 25.00mm Dia

Contact Resistance

0.035mOhm

Insulation Resistance

100000000Ohm

Color - Actuator/Cap

Clear

Illumination Voltage (Nominal)

250VAC

Illumination Type, Color

Neon, Clear

Dielectric Withstanding Voltage

1500VAC V

Illumination Type

Clear, Neon

Contact (AC) Max Rating R Load

16A@125VAC

Body Color

BLACK

Contact (AC) Max Power Rating R Load

0.75HP@250VAC

Body Height

22.5044mm

Length - Termination

0.386 inch

Actuator Length

0.394 inch

RoHS Status

ROHS3 Compliant
