320E11GRN - E-Switch

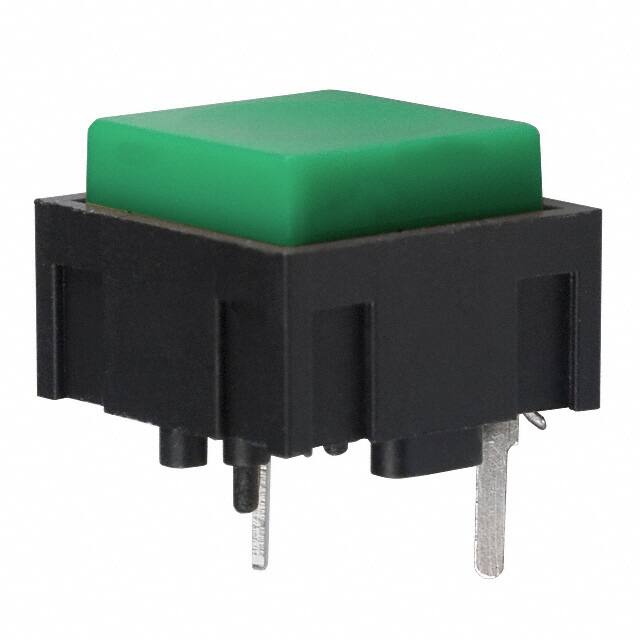

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY42-320E11GRN
Hersteller Teil #: 320E11GRN
Produktkategorie: Tactile Switches
Hersteller: E-Switch
Beschreibung: SWITCH TACT SPST-NO 0.025A 50V
Verpackung:
Menge:
Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform
Vorlaufzeit: 3(168 Hours)
Spezifikationen
Attribute
Attribute Value
Factory Lead Time
10 Weeks
Contact Plating
Silver
Mount
Through Hole
Mounting Type
Through Hole
Housing Material
Nylon
Actuator Material
Polycarbonate (PC)
Center Contact Material
COPPER ALLOY
Terminal Material
COPPER ALLOY
End Contact Material
COPPER ALLOY
ElectricalLife
1e+06 cycles
Operating Temperature
-20°C~70°C
Packaging
Bulk
Series
320
Published
2001
JESD-609 Code
e4
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
PC Pin
ECCN Code
EAR99
Additional Feature
WITHOUT GROUND TERMINAL
Voltage - Rated DC
50V
Orientation
Straight
Current Rating
25mA
Termination Style
PC Pin
Body Breadth
12.3952 mm
Actuator Type
Square Button
Circuit
SPST-NO
Switch Function
Off-Mom
Contact Resistance
50mOhm
Insulation Resistance
1000000000Ohm
Contact Current(DC)-Max
0.3A
Dielectric Withstanding Voltage
1000VRMS V
Throw Configuration
SPST
Illumination
Non-Illuminated
Max Voltage Rating (DC)
50V
Mechanical Life
1,000,000 Cycles
Switch Type
PUSHBUTTON SWITCH
Contact Current Rating
25mA
Operating Force
135gf
Actuator Orientation
Top Actuated
Contact (DC) Max Rating R Load
0.3A@50VDC
Outline
12.40mm x 12.40mm
Contact Rating @ Voltage
0.025A @ 50VDC
PCB Hole Count
4
Contact Function
ON-OFF
Switch Travel
0.60mm
Actuator Height off PCB, Vertical
9.95mm
Features
Green Cap
Length
12.5mm
Width
12.5mm
Body Height
7.3914mm
Actuator Length
2.55mm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
