MP240D3 - Sensata-Crydom

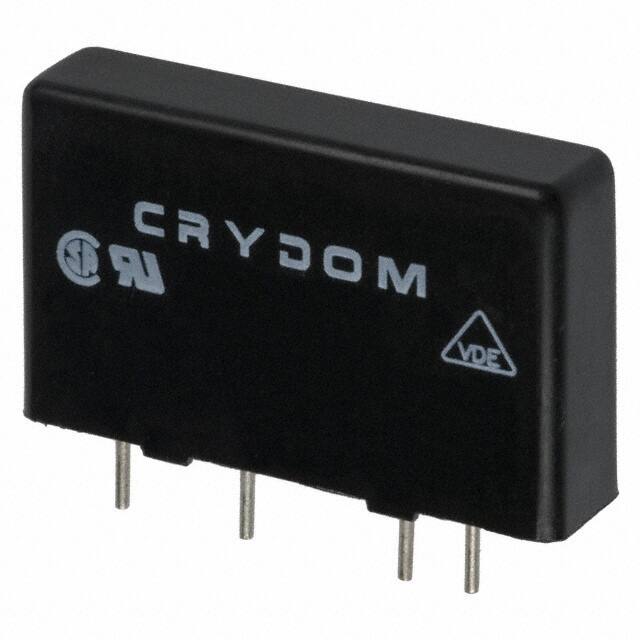

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY36-MP240D3

Hersteller Teil #: MP240D3

Produktkategorie: Solid State Relays

Hersteller: Sensata-Crydom

Beschreibung: CRYDOM MP240D3Solid State Relay, MP Series, SIP, SPST-NO, 3 A, PCB, Through Hole, 24 Vrms, 280 Vrms

Verpackung: 4-SIP

Menge:

Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform

Vorlaufzeit: 3(168 Hours)

Datenblatt: datasheet

MP240D3 Datenblatt

Attribute

Attribute Value

Factory Lead Time

4 Weeks

Mount

PCB, Through Hole

Mounting Type

Through Hole

Package / Case

4-SIP

Number of Pins

Supplier Device Package

4-SIP

CoilResistance

1.5kOhm

Voltage Rated

280V

Packaging

Bulk

Series

Published

2001

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

PC Pin

Max Operating Temperature

80°C

Min Operating Temperature

-40°C

Depth

10.2mm

Current Rating

Termination Style

PC Pin

Approval Agency

CE, CSA, UL, VDE

Output Voltage

280V

Output Type

AC, Zero Cross

Max Output Current

Operating Supply Voltage

280V

Circuit

SPST-NO (1 Form A)

Current - Output

Throw Configuration

SPST

Max Output Voltage

280V

Max Surge Current

90A

Relay Type

Relay

Switching Voltage

280V

Voltage - Load

24V~280V

Input Current

2.6mA

Load Current

Isolation Voltage

4kV

Switching Current

Height

25.4mm

Length

43.1mm

Width

25.4mm

REACH SVHC

No SVHC

Radiation Hardening

RoHS Status

RoHS Compliant

Lead Free

Teilenummer	Paket	Beschreibung
MP240D3	4-SIP	CRYDOM MP240D3Solid State Relay, MP Series, SIP, SPST-NO, 3 A, PCB, Through Hole, 24 Vrms, 280 Vrms
D2W203F	4-SIP	CRYDOM D2W203FSolid State Relay, D2W Series, SIP, SPST-NO, 3 A, PCB, Through Hole, 24 Vrms, 280 Vrms
DR24A03	Module	SSR RELAY SPST-NO 3A 24-280V
S322	Module	SSR RELAY SPST-NO 3A 40-280V

MP240D3 Preis
MP240D3 Verteilers
MP240D3 Hersteller
MP240D3 Technische Daten
MP240D3 PDF
MP240D3 Datenblätter
MP240D3 Bild
MP240D3 Foto
MP240D3 Teil
MP240D3 Lagerbestand
MP240D3 Inventar
MP240D3 Angebotsanfrage
Kaufen MP240D3
MP240D3 Anfrage
MP240D3 Onlinebestellung

Suchen Sie nach anderen Teilen wie mp240

What does a solid state relay do?

A solid state relay (SSR) is an electronic switching device that switches on or off when an external voltage (AC or DC) is applied across its control terminals. They serve the same function as an electromechanical relay, but as solid-state electronics contain no moving parts and have a longer operational lifetime.

What is the advantage of a solid state relay?

Solid State Relays switch on/off faster because there are no physical parts to move. This means power to a load can be applied and removed very quickly and precisely, which is especially important for applications that requires quick on-off switching.

How fast can a solid state relay switch?

Solid state relays can switch up to 120 times per second, much faster than any electromechanical relay. When used in heating applications, fast cycling can dramatically improve the life of the heater by reducing thermal stress. SSRs allow the switching of large loads via ultra-sensitive input power.
