Factory Lead Time

6 Weeks

Mount

Panel

Mounting Type

Panel Mount

ElectricalLife

50,000 Cycles

Operating Temperature

-17.8°C~65.6°C

Packaging

Bulk

Series

F

Published

2012

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Screw

ECCN Code

EAR99

Current Rating (Amps)

20A AC

Orientation

Straight

Current Rating

20A

Termination Style

Screw Terminal

Voltage - Rated AC

125V

Body Length or Diameter

28.8036mm

Body Breadth

16.1036 mm

Actuator Type

Standard Round

Circuit

SPST

Switch Function

On-Off

Panel Cutout Dimensions

Circular - 12.70mm Dia

Insulation Resistance

100000000Ohm

Dielectric Withstanding Voltage

1000VRMS V

Illumination

Non-Illuminated

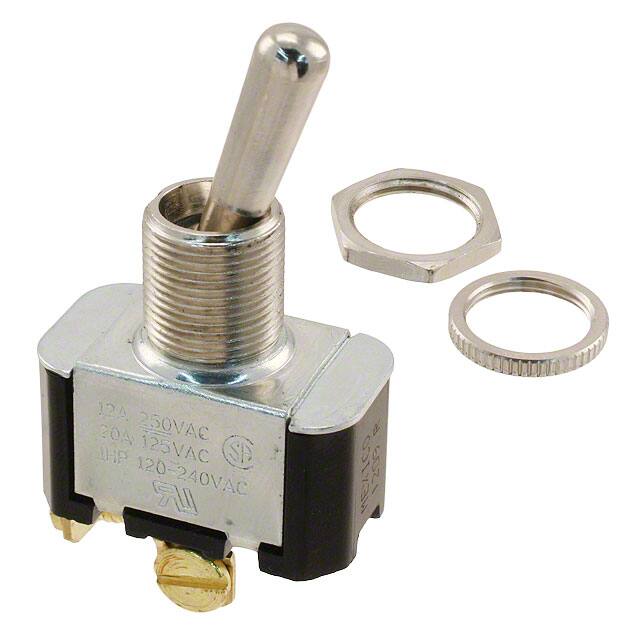

Switch Type

TOGGLE SWITCH

Bushing Thread

15/32-32

Contact Current(AC)-Max

10A

Contact (AC) Max Rating R Load

10A@250VAC

Hole Diameter

12.7 mm

Contact Voltage(AC)-Max

250V

Bushing Length

0.465 inch

Contact (AC) Max Power Rating R Load

0.75HP@250VAC

Actuator Finish

NICKEL

Body Height

17.018mm

Actuator Length

17.45mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
