Factory Lead Time

12 Weeks

Package / Case

125

Mounting Type

Panel Mount, Snap-In

Mount

Panel, Snap in

Housing Material

NYLON

Center Contact Material

COPPER

Terminal Material

COPPER

End Contact Material

COPPER

ElectricalLife

25,000 Cycles

Series

2000

Packaging

Bulk

Operating Temperature

-20°C~105°C

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Quick Connect

Current Rating (Amps)

16A AC

Current Rating

16A

Termination Style

Quick Connect - 0.250 (6.3mm)

Voltage - Rated AC

125V

Body Length or Diameter

28.448mm

Body Breadth

13.8938 mm

Actuator Type

Concave (Curved) - Illuminated

Circuit

SPST

Switch Function

On-Off

Panel Cutout Dimensions

Rectangular - 28.58mm x 13.97mm

Contact Resistance

0.01mOhm

Insulation Resistance

1000000000Ohm

Color - Actuator/Cap

Red

Illumination Voltage (Nominal)

125VAC

Illumination Type, Color

Neon, Red

Dielectric Withstanding Voltage

2500VAC V

Mechanical Life

25,000 Cycles

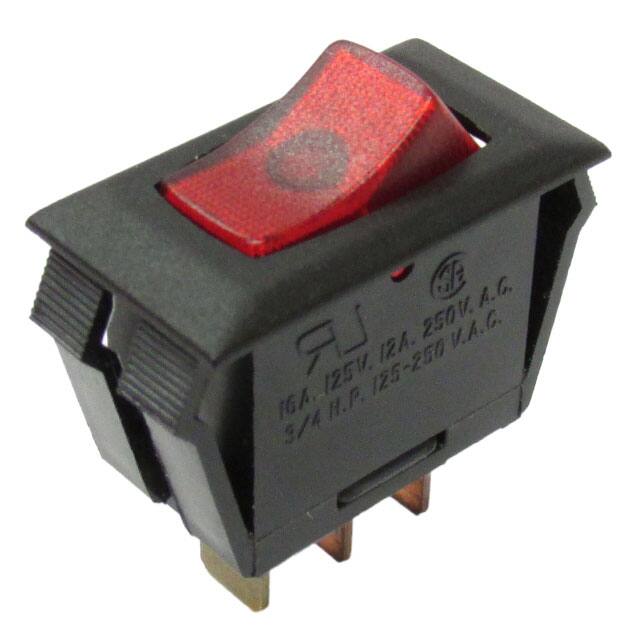

Switch Type

ROCKER SWITCH

Illumination Type

Neon

Contact Current(AC)-Max

12A

Contact (AC) Max Rating R Load

12A@250VAC

Contact Voltage(AC)-Max

250V

Actuator Marking

No Marking

Body Color

BLACK

Contact (AC) Max Power Rating R Load

0.75HP@250VAC

Body Height

19.558mm

Length - Termination

0.37 inch

Actuator Length

0.28 inch

RoHS Status

ROHS3 Compliant
