Factory Lead Time

12 Weeks

Package / Case

125

Mounting Type

Panel Mount, Snap-In

Mount

Panel, Snap in

Housing Material

NYLON

Actuator Material

NYLON

Center Contact Plating

SILVER

Center Contact Material

COPPER ALLOY

Terminal Material

COPPER ALLOY

ElectricalLife

25,000 Cycles

Voltage - Rated (AC)

125V

Series

4000

Packaging

Bulk

Operating Temperature

-20°C~105°C

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Quick Connect

Current Rating (Amps)

16A AC

Termination Style

Quick Connect - 0.187 (4.7mm)

Body Length or Diameter

18.923mm

Body Breadth

12.7 mm

Actuator Type

Concave (Curved)

Circuit

SPDT

Switch Function

On-On

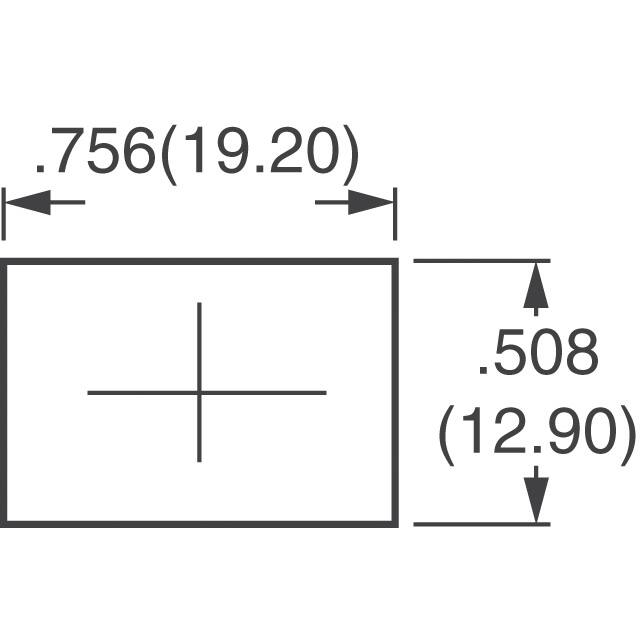

Panel Cutout Dimensions

Rectangular - 19.20mm x 12.90mm

Contact Resistance

0.01mOhm

Insulation Resistance

1000000000Ohm

Color - Actuator/Cap

Bisque

Dielectric Withstanding Voltage

2500VAC V

Mechanical Life

25,000 Cycles

Switch Type

ROCKER SWITCH

Contact (AC) Max Rating R Load

16A@250VAC

Contact Voltage(AC)-Max

250V

Actuator Marking

Bump

Contact (AC) Max Power Rating R Load

0.75HP@250VAC

Features

Polarized

Body Height

11.684mm

Length - Termination

0.34 inch

Actuator Length

0.23 inch

RoHS Status

ROHS3 Compliant
